Mfr Part #:

PM20S-020-124

Name: PM20S-020-124
Brand: Trinamic Motion Control GmbH
SKU: PM20S-020-124

Description:

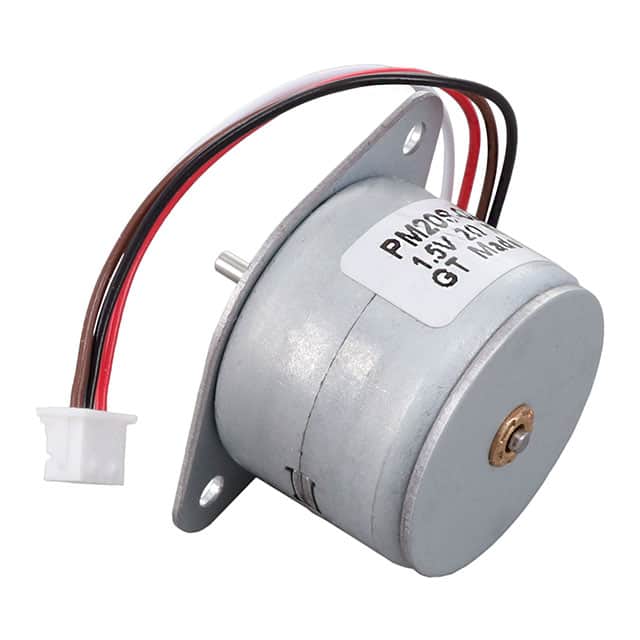

PERM MAGNET STEP MTR 1.5V 0.8NCM

Stock on Request

PM20S-020-124 Description

Short technical summary and product information.

PERM MAGNET STEP MTR 1.5V 0.8NCM

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Stepper Motors
Manufacturer Name	Trinamic Motion Control GmbH
Coil Resistance	2 Ω
Coil Type	Bipolar
Current Rating (Amps)	750 mA
Diameter	0.059" (1.50mm)
Length	0.256" (6.50mm)
Mounting Hole Spacing	1.220" (31.00mm)
NEMA Frame Size	8
Size	Round - 0.807" Dia (20.50mm)
Step Angle	18°
Steps per Revolution	20
Termination Style	Wire Leads with Connector
Torque	1.1 / 7.77
Type	Permanent Magnet
Voltage	1.5VDC
