Mfr Part #:

PM208MBALST

Name: PM208MBALST
Brand: Anderson Power Products, Inc.
SKU: PM208MBALST

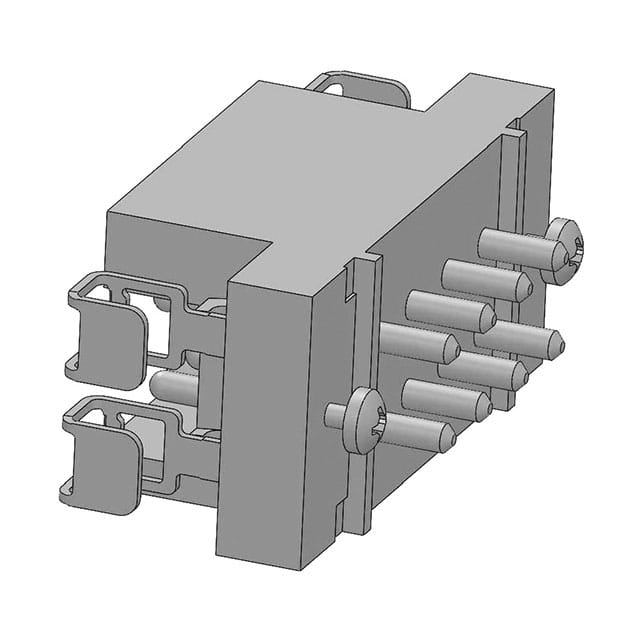

POWERMOD 2X8 PIN STRAIGHT PCB 7M

Stock on Request

PM208MBALST Description

Short technical summary and product information.

POWERMOD 2X8 PIN STRAIGHT PCB 7M

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	Anderson Power Products, Inc.
Connector Type	Header
Contact Finish	Tin Alloy
Contact Finish Thickness	10.0碌in (0.25碌m)
Contact Length	0.150" (3.81mm)
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin, Power
Current Rating (Amps)	30A
Fastening Type	Latch Lock
Features	Mounting Hardware
Insulation Color	Black
Insulation Height	0.600" (15.24mm)
Insulation Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 180°C
Pitch	0.197" (5.00mm)
Row Spacing	0.197" (5.00mm)
Shrouding	Shrouded - 2 Wall
Style	Board to Board or Cable
Termination	Solder
Voltage Rating	600V
