| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
83 pcs
|
83 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Material | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Enclosure Material | |
| Frequency | |
| Height | |
| Inductance | |
| Inductance Range | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Resistance to Soldering Heat | |
| Shielding | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Terminal Finish | |
| Tolerance | |
| Type | |
| Width | |
| Wire Material |

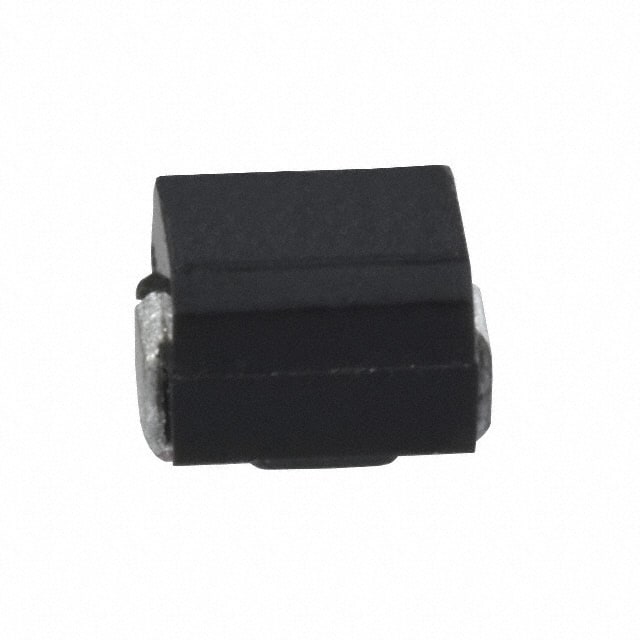

The Bourns PM1210-100J-RC is a surface mountable chip inductor belonging to the PM1210 Series. This component offers a nominal inductance of 10µH with a tolerance of ±5% and a DC resistance (DCR) of 2.1Ω maximum at 25°C. It is designed for applications requiring a current rating of up to 140mA.
The inductor operates within a temperature range of -40°C to +125°C and has a self-resonant frequency of 36MHz. Its construction utilizes a ferrite core and enamelled copper wire, enclosed in epoxy resin. The package size is 1210 (3225 Metric), with dimensions of 3.20mm in length, 2.50mm in width, and 2.20mm in height.
This inductor is suitable for automatic surface mounting due to its accurate dimensions. It is RoHS compliant and designed for high resistance to heat and humidity, as well as mechanical shock and pressure. Applications include mobile phones and cellular phones.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 10 µH with a tolerance of ±5%.
The maximum DC resistance is 2.1Ω.
The current rating is 140 mA.
The operating temperature range is -40°C to +125°C.
This inductor uses a ferrite core.
The dimensions are 3.20mm L x 2.50mm W x 2.20mm H.
The standard package quantity is 2,000 pieces per 7-inch reel.
