| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

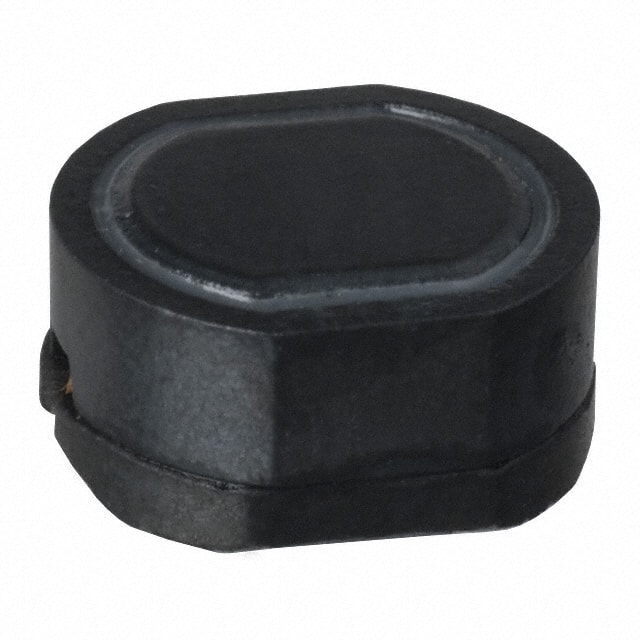

The Bourns PM105SB-221K-RC is a shielded SMD power inductor from the PM105SB series. It offers a nominal inductance of 220µH with a tolerance of ±10%, tested at 100 kHz. This inductor is designed for surface mounting and has a compact size with dimensions of 9.90mm x 9.90mm x 4.80mm.
Key electrical characteristics include a maximum DC resistance (DCR) of 780mΩ and a current rating of 470mA. The Q factor is 27 at 796kHz. The operating temperature range is -40°C to 125°C.
Applications for this inductor include the input/output of DC/DC converters and power supplies for portable communication equipment, camcorders, and LCD TVs. The drum core, wirewound construction with a ferrite material ensures reliable performance in demanding applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 220µH.
The current rating is 470mA.
The maximum DC resistance is 780mΩ.
The operating temperature range is -40°C to 125°C.
It is designed for surface mounting.
The standard package quantity is 500 pcs. per reel.
