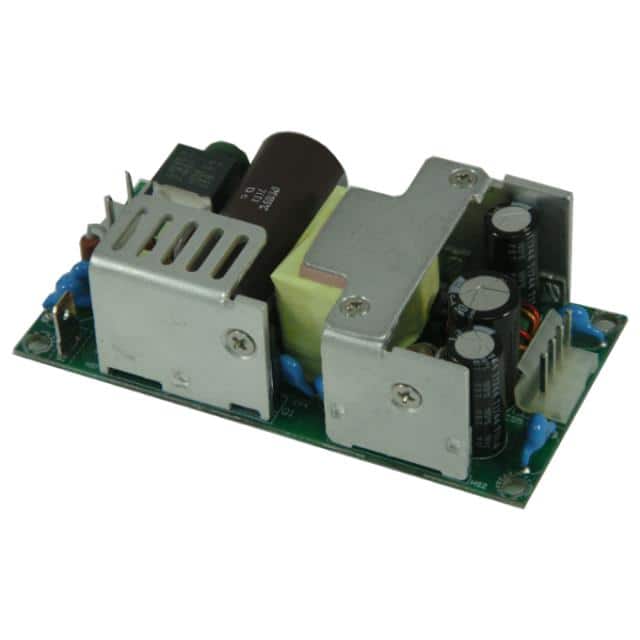

This FSP Technology Inc. PM101-12A is an 80W AC/DC converter designed for ITE (Commercial) and Medical applications. It features an open frame type with chassis mount for easy integration.
The converter operates with a universal input voltage range of 80 to 264 VAC and delivers a single output current of 6.67A. Key features include adjustable output and universal input capabilities, with an efficiency rating of 90%.
With dimensions of 101.6mm x 50.8mm x 32.8mm, it is suitable for space-constrained designs. The operating temperature range is -20°C to 70°C with derating. It complies with standard numbers 60601-1 and 62368-1, and holds approvals from CE, cURus, TUV, and UL.
Environmental compliance includes RoHS3 compliance, MSL 1, and REACH unaffected status.
The output power is 80W.
The input voltage range is 80 to 264 VAC.
The output current is 6.67A.
The operating temperature range is -20°C to 70°C, with derating.
It uses a chassis mount.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
