| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,569 pcs
|
3569 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Self Resonant Frequency | |
| Shielding | |
| Standard Package Quantity | |
| Supplier Device Package | |
| Tolerance | |
| Type | |
| Width |

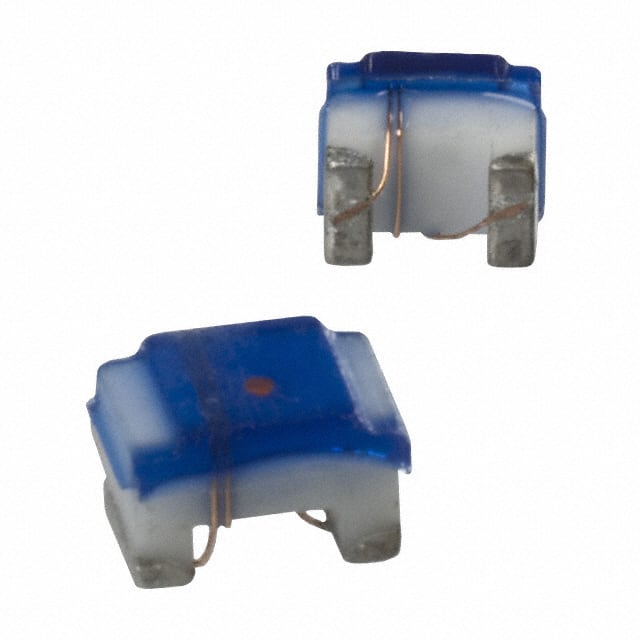

The Bourns PM0805-R39K is a wirewound, unshielded fixed inductor designed for surface mount applications. It offers a nominal inductance of 390nH with a tolerance of ±10% and a maximum DC resistance of 2.2 Ohms. The component is rated for a current of 170mA and operates within a temperature range of -40°C to 125°C.
This inductor utilizes a ceramic core and is suitable for automated pick and place assembly due to its flat top surface. It is packaged on tape and reel, with 2000 units per reel, making it ideal for high-volume manufacturing.
Key electrical characteristics include a Q factor of 45 at 250MHz and a self-resonant frequency of 780MHz. The 0805 (2012 Metric) package size makes it versatile for various PCB designs. This part is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 390 nH with a tolerance of ±10%.
The current rating is 170 mA.
The maximum DC resistance is 2.2 Ohms.
The self-resonant frequency is 780 MHz.
It is in an 0805 (2012 Metric) package.
