| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
39 pcs
|
39 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Transformer Type | |
| Turns Ratio | |
| Width |

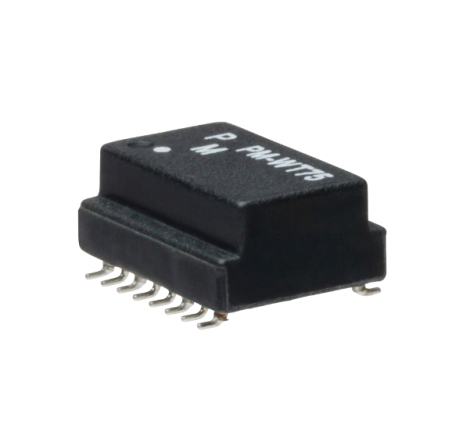

The Premier Magnetics PM-WT75 is a pulse transformer designed for WIDEBAND RF PULSE COUPLING applications. It offers a nominal inductance of 7µH and a turns ratio of 1:1.
This transformer is suitable for a wide operating temperature range, from -40°C to 85°C. Its mechanical dimensions include a height of 4.80mm, length of 11.45mm, and width of 8.80mm. The mounting type is Surface Mount, making it convenient for various PCB designs.
As a Data/Voice Coupling transformer, the PM-WT75 is engineered for specific signal transmission needs. While RoHS3 compliant, MSL 1, and REACH unaffected, users should verify these compliance details for critical applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.00 | $3.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the PM-WT75 transformer is 7µH.
The PM-WT75 operates within a temperature range of -40°C to 85°C.
The turns ratio of the PM-WT75 transformer is 1:1.
The PM-WT75 is a Data/Voice Coupling transformer.
The PM-WT75 transformer has dimensions of 11.45mm in length, 8.80mm in width, and 4.80mm in height.
The PM-WT75 transformer is designed for Surface Mount.
