| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

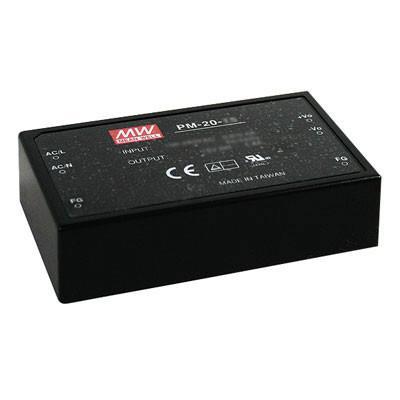

The Mean Well USA PM-20-3.3 is an AC/DC converter designed for various applications, including medical use. This enclosed unit operates with a universal input voltage range of 85 to 264 VAC or 120 to 370 VDC, providing a stable 3.3V output at 4.5A, for a total power of 15W.
With an efficiency of 71%, the PM-20-3.3 is suitable for applications requiring reliable power conversion. It features a through-hole mounting type and a 6-DIP module package. The operating temperature range is -20°C to 60°C, with derating applied at higher temperatures.
Key specifications include a universal input, single output, and compliance with CB, CE, cURus, and TUV standards. The dimensions are 94.0mm in length, 56.0mm in width, and 22.7mm in height.
The PM-20-3.3 provides a 3.3V output voltage.
The PM-20-3.3 has a power rating of 15W.
The input voltage range is 85 to 264 VAC or 120 to 370 VDC.
The PM-20-3.3 uses through-hole mounting.
The operating temperature range is -20°C to 60°C, with derating.
The dimensions are 94.0mm x 56.0mm x 22.7mm.
It meets CB, CE, cURus, and TUV standards.
