| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

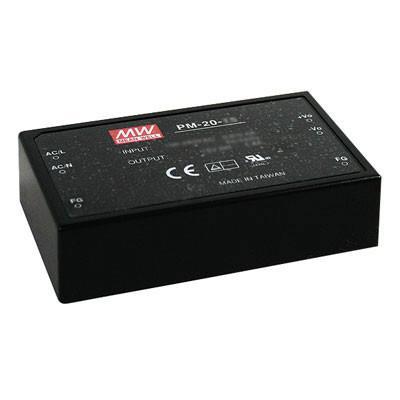

The Mean Well USA PM-20-24 is an enclosed AC/DC converter designed for various applications, including medical use. It provides a 24V output with a power rating of 22W and an output current of 920mA.
This converter accepts a wide input voltage range of 85 to 264 VAC or 120 to 370 VDC, offering flexibility in power source selection. It boasts an efficiency of 84% and operates within a temperature range of -20°C to 60°C, with derating applied at higher temperatures.
Featuring universal input and essential approvals such as CB, CE, cURus, and TUV, the PM-20-24 is suitable for international use. Its dimensions are 94.0mm in length, 56.0mm in width, and 22.7mm in height. The mounting type is Through Hole, and it comes in a 6-DIP Module package.
Compliance information indicates RoHS3 compliance, MSL 1 Unlimited, and REACH unaffected status. The part number for this unit is PM-20-24.
85-264 VAC and 120-370 VDC.
6-DIP Module with through-hole mounting.
-20°C to 60°C with derating.
Single output.
84%.
CB, CE, cURus, TUV.
Medical applications.
