| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Package / Case | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Weight | |
| Width |

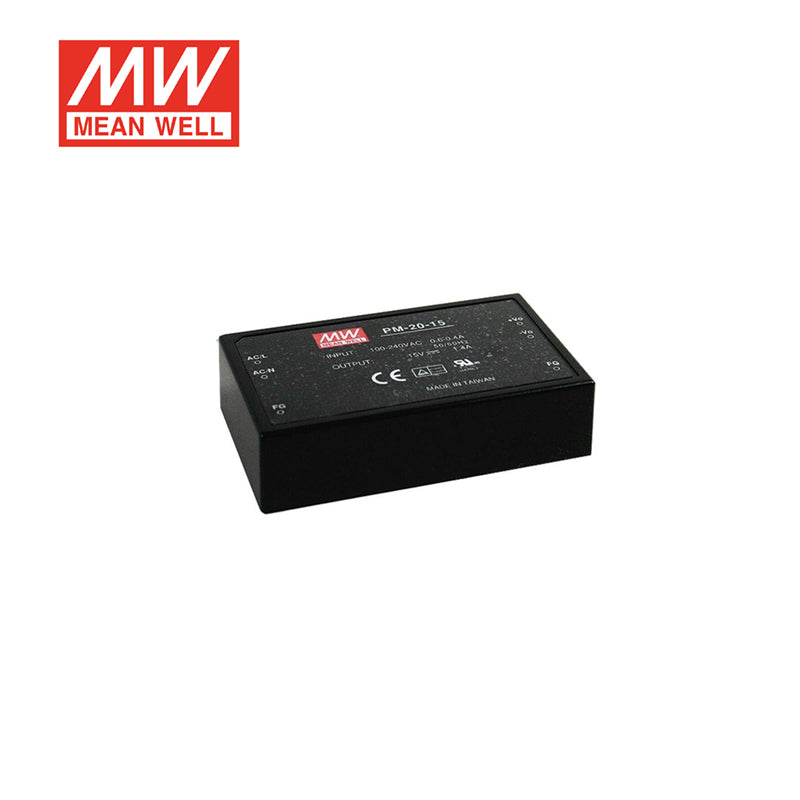

The Mean Well PM-20-15 is an AC/DC converter designed for various applications, including medical use. It operates with a universal input voltage range of 85-264 VAC or 120-370 VDC, providing a stable 15V output at 1.4A, delivering a total power of 21W.
This converter boasts an efficiency of 83% and features protections against short circuit, overload, and over voltage. It is designed for through-hole mounting and comes in a 6-DIP module package. The operating temperature range is -20°C to 60°C with derating.
Key electrical specifications include line regulation of ±0.5% and load regulation of ±1.0%. It also offers low leakage current (<300uA) and a no-load power consumption of less than 0.75W. The unit is approved by CB, CE, cURus, and TUV safety standards, with 2 x MOPP isolation between primary and secondary circuits, making it suitable for BF applications with appropriate system considerations.
Mechanical dimensions are 94.0mm x 56.0mm x 22.7mm. The PM-20-15 is built for reliability and includes a 3-year warranty.
The Mean Well PM-20-15 provides a 15V DC output voltage.
The rated current for the PM-20-15 is 1.4 Amperes.
The power rating of the Mean Well PM-20-15 is 21 Watts.
The efficiency of the PM-20-15 is 83%.
The PM-20-15 operates within a temperature range of -20°C to 60°C, with derating.
The PM-20-15 is supplied in a 6-DIP Module package.
The PM-20-15 is designed for through hole mounting.
