| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

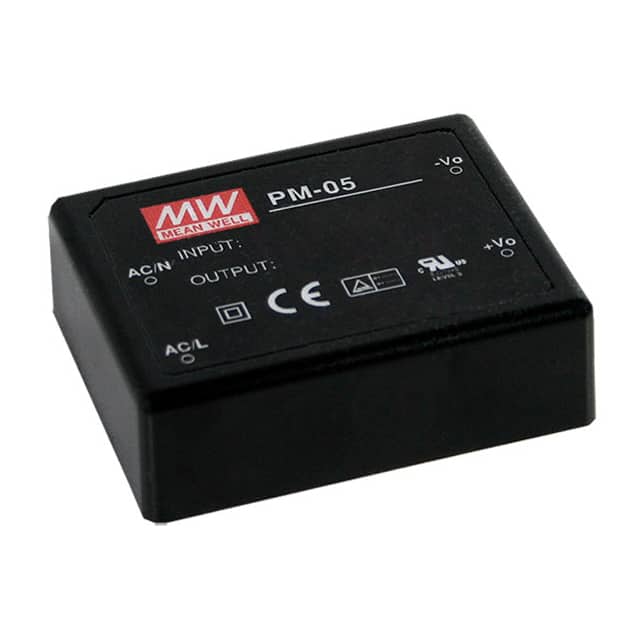

The Mean Well USA PM-05-12 is an enclosed AC/DC converter designed for various applications, including medical. It operates with a universal input voltage range of 85 to 264 VAC or 120 to 370 VDC, providing a stable 12V output at 420mA, delivering a total of 5W of power.
This converter boasts an efficiency of 73% and features universal input capabilities. It is designed for Through Hole mounting and comes in a 4-DIP Module package. The operating temperature range is -20°C to 70°C with derating. Key approvals include CB, CE, cURus, and TUV.
With dimensions of 62.9mm in length, 50.0mm in width, and 19.7mm in height, the PM-05-12 is suitable for integration into various electronic systems. It is RoHS3 Compliant and has an MSL of 1.
The input voltage range is 85~264 VAC or 120~370 VDC.
It provides a single 12V output at 420mA.
The operating temperature range is -20°C to 70°C with derating.
It comes in a 4-DIP Module package.
It has CB, CE, cURus, and TUV approvals.
The typical efficiency is 73%.
Yes, it is designed for medical applications.
