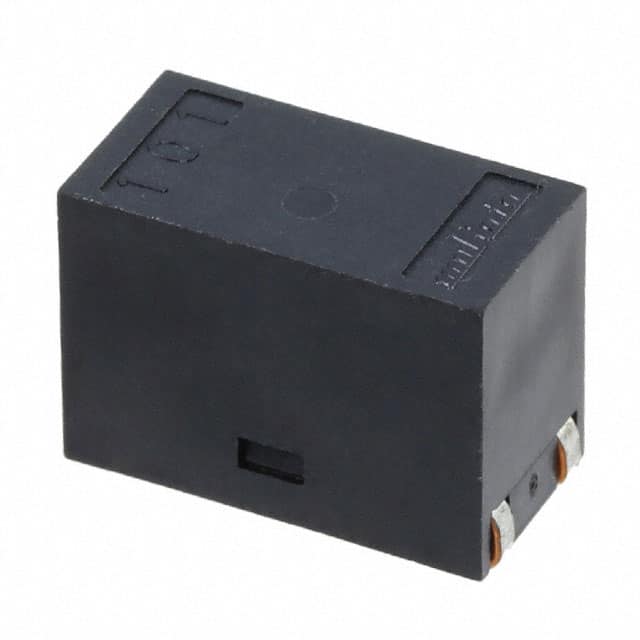

PLT10HH101150PNL The Murata PLT10HH101150PNL is a surface mount common mode choke coil designed for power line filtering. It offers a 300V DC rating and a maximum current of 15A.
Mfr Part #:

PLT10HH101150PNL

Available from 1 distributors
Mfr Name: Murata
Murata
The Murata PLT10HH101150PNL is a surface mount common mode choke coil designed for power line filtering. It offers a 300V DC rating and a maximum current of 15A.
✓ Total Stock: 77 pcs
$ Price Range: $0.99

PLT10HH101150PNL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
77 pcs
On Request
77 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PLT10HH101150PNL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Max)
DC Resistance (DCR) (Max)
Filter Type
Height
Height (Max)
Impedance @ Frequency
Lead Style
Length
Mounting Type
Number of Lines
Operating Temperature
Ratings
Voltage Rating
Width
View Similar Products (0)

PLT10HH101150PNL Description

Short technical summary and product information.

The Murata PLT10HH101150PNL is a surface mount common mode choke coil belonging to the PLT10H series. Designed for automotive electronics and qualified to AEC-Q200 standards, this component is suitable for power line filtering applications.



Key electrical specifications include a rated DC voltage of 300V, a maximum current rating of 15A, and a common mode impedance of 100 Ohms at 10MHz. The DC resistance (DCR) is a maximum of 2.3mΩ. The operating temperature range is -55°C to 125°C.



This common mode choke coil features a compact SMD package with dimensions of 12.9mm x 9.1mm and a maximum height of 9.40mm. It has 2 lines and is designed for vertical mounting on a 4 PC pad. The AEC-Q200 qualification indicates its suitability for demanding automotive environments.

PLT10HH101150PNL Quick Information

Product Type: Common Mode Choke
Series: PLT10H
Canonical Name: Murata PLT10H Series Common Mode Choke Coil
Subcategory: Common Mode Filters

PLT10HH101150PNL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PLT10HH101150PNL Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

PLT10HH101150PNL Features

  • AEC-Q200 qualified common mode choke coil.
  • Rated for 300V DC and 15A maximum current.
  • Offers 100 Ohm impedance at 10MHz.
  • Surface mount package with 2 lines.
  • Wide operating temperature range of -55°C to 125°C.

PLT10HH101150PNL Applications

  • Ideal for automotive power line filtering.
  • Suitable for noise suppression circuits.
  • Used in electronic control modules.
  • Effective for EMI reduction.

PLT10HH101150PNL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the voltage rating for the PLT10HH101150PNL?

The PLT10HH101150PNL has a DC voltage rating of 300V.

What is the maximum current rating for this common mode choke?

The maximum current rating for the PLT10HH101150PNL is 15A.

What is the impedance of the PLT10HH101150PNL at 10MHz?

The common mode impedance of the PLT10HH101150PNL at 10MHz is 100 Ohms.

What is the operating temperature range for the PLT10HH101150PNL?

The operating temperature range for the PLT10HH101150PNL is -55°C to 125°C.

What type of package is the PLT10HH101150PNL in?

The PLT10HH101150PNL is in a Vertical, 4 PC Pad package.

Is the PLT10HH101150PNL qualified for automotive applications?

Yes, the PLT10HH101150PNL is qualified to AEC-Q200 standards.
