| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

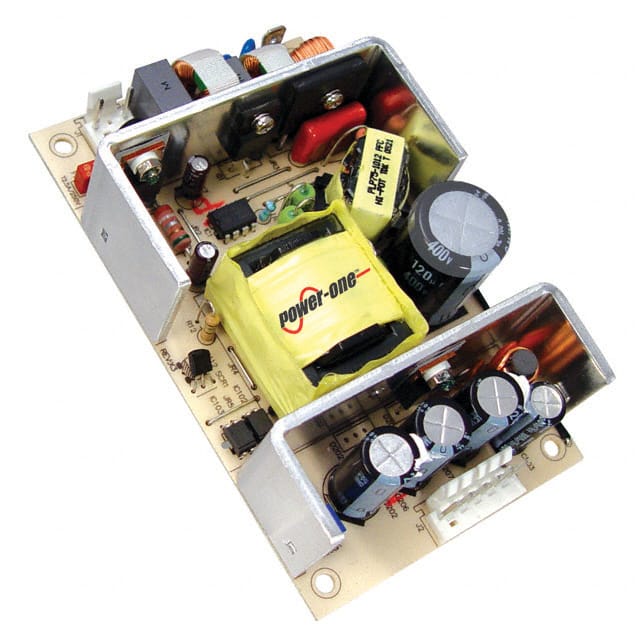

The PLP75-1012G from Bel Power Solutions is a cost-effective and efficient AC-DC power supply designed for telecom, datacom, and industrial applications. This open-frame unit offers a nominal output voltage of 12VDC and can deliver up to 5.4A with convection cooling or 6.5A with forced air.
Key electrical specifications include a wide 85-264 VAC input range, 75W maximum power output with forced air, and 65W with convection cooling. It boasts a typical efficiency of 80% and features active power-factor-correction (PFC) to meet EN 61000-3-2 requirements. The operating temperature range is -20°C to 70°C with derating.
Designed for easy integration, the PLP75-1012G has a chassis mount type and measures 127.0mm x 76.2mm x 35.0mm. It meets international information technology safety standards and is CE-marked for the European Low Voltage Directive (LVD).
The nominal output voltage is 12VDC.
The maximum output current is 5.4A with convection cooling and 6.5A with forced air.
The AC input voltage range is 85 to 264 VAC.
The maximum power output is 75W with forced air cooling and 65W with convection cooling.
The typical efficiency is 80%.
The operating temperature range is -20°C to 70°C with derating.
Yes, it features active power-factor-correction (PFC).
