| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
74 pcs
|
74 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Length | |
| Lens Size | |
| Lens Style | |
| Material | |
| Mounting Type | |
| Orientation | |
| Type | |
| Viewing Angle |

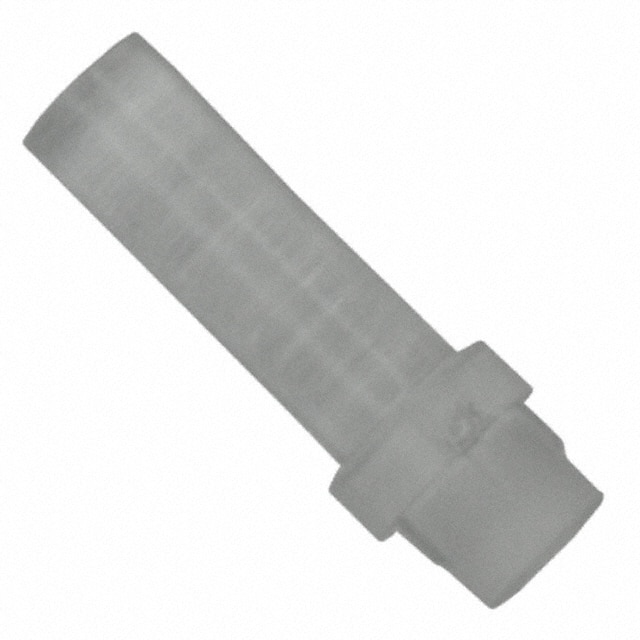

The Bivar PLP1-375-F is a rigid LED light pipe from the PLP1 series, designed for panel mounting. This light pipe is rear-mounted into the front panel and positioned close to the PCB-mounted LED. It is constructed from clear polycarbonate with a 94V-0 flammability rating, offering protection against ESD.
Key specifications include a 3mm lens size, a length of 11.8mm, and an outside diameter of 3mm. It has a single way configuration and a flat light pipe shape. The mounting type is panel mount, press fit, and rear. The lens color is clear, suitable for all LED colors, and it offers a viewing angle of 120 degrees. The material is polycarbonate, and it meets the 94V-0 flammability standard.
These light pipes are ideal for directing light from an LED source to a desired location, offering design flexibility in various applications. The easy press-fit installation makes integration straightforward.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The lens size is 3 mm.
The length is 11.8 mm.
The mounting type is Panel Mount, Press Fit, Rear.
The lens color is Clear.
The viewing angle is 120 degrees.
It is made from clear polycarbonate.
The flammability rating is 94V-0.
