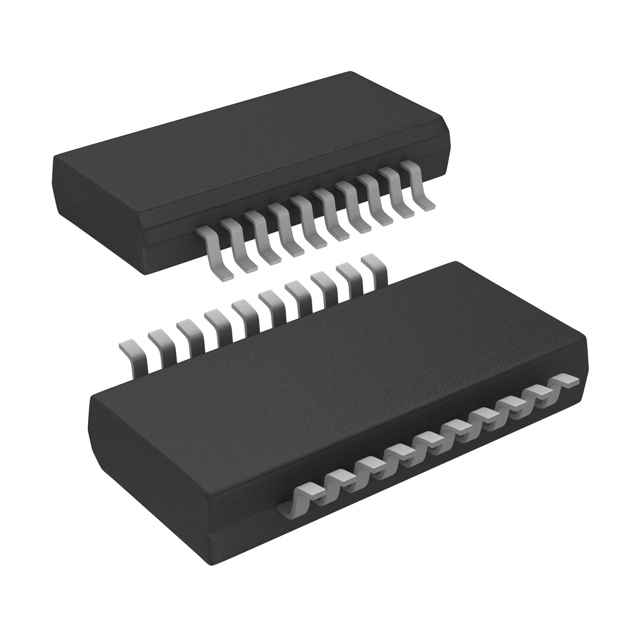

PLL1708DBQR The Texas Instruments PLL1708DBQR is a PLL Multi-Clock Generator designed for various audio and digital systems. It operates from a 2.7V to 3.6V supply.
Mfr Part #:

PLL1708DBQR

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments PLL1708DBQR is a PLL Multi-Clock Generator designed for various audio and digital systems. It operates from a 2.7V to 3.6V supply.
✓ Total Stock: 1,767 pcs
$ Price Range: $7.01

PLL1708DBQR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
1,767 pcs
On Request
1767 pcs On Request 1 On Request On Request 1049+5 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PLL1708DBQR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Differential
Divider
Frequency
Input
Input Type
Lead Spacing
Mounting Type
Number of Circuits
Operating Temperature
Output
PLL
Ratio
Supplier Device Package
Tape & Reel
Type
Voltage
View Similar Products (0)

PLL1708DBQR Description

Short technical summary and product information.

The Texas Instruments PLL1708DBQR is a low-cost, phase-locked loop (PLL) multiclock generator. It can generate multiple system clocks from a 27-MHz reference input frequency, offering zero PPM error output clocks and low clock jitter of typically 50 ps. This device supports multiple sampling frequencies, including 16, 22.05, 24, 32, 44.1, 48, 64, 88.2, and 96 kHz for the PLL1708.



It operates on a single 3.3-V power supply, with a voltage range of 2.7V to 3.6V. The PLL1708 features serial control for its clock generation capabilities. The maximum output frequency is 36.87 MHz. The operating temperature range is from -25°C to 85°C.



Packaged in a 20-SSOP (0.154", 3.90mm Width) surface mount configuration, the PLL1708DBQR is suitable for applications such as HDD + DVD recorders, DVD recorders, HDD recorders, DVD players, DVD add-on cards for multimedia PCs, digital HDTV systems, and set-top boxes. Its design aims to provide cost and space savings by eliminating external components while enabling high-performance audio DACs and ADCs.

PLL1708DBQR Quick Information

Product Type: Clock Generator
Canonical Name: PLL1708DBQR PLL Multi-Clock Generator
Subcategory: Clock/Timing

PLL1708DBQR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PLL1708DBQR Estimated Pricing

Qty Low High
1+ $7.01 $7.01

Estimated market price range - modelled values for guidance only, not live distributor offers.

PLL1708DBQR Features

  • Generates multiple system clocks from 27-MHz input.
  • Low clock jitter of 50 ps typical.
  • Supports multiple sampling frequencies.
  • Operates on a 2.7V to 3.6V supply.
  • 20-SSOP surface mount package.

PLL1708DBQR Applications

  • Ideal for DVD recorders and HDD recorders.
  • Suitable for digital HDTV systems.
  • Used in multimedia PC add-on cards.
  • Applicable for set-top boxes.

PLL1708DBQR FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the PLL1708DBQR?

The operating voltage range for the PLL1708DBQR is 2.7V to 3.6V.

What is the operating temperature range for the PLL1708DBQR?

The operating temperature range for the PLL1708DBQR is -25°C to 85°C.

What package type is the PLL1708DBQR available in?

The PLL1708DBQR is available in a 20-SSOP package, specifically 20-SSOP (0.154", 3.90mm Width).

What is the maximum frequency for the PLL1708DBQR?

The maximum frequency for the PLL1708DBQR is 36.87 MHz.

What sampling frequencies does the PLL1708 support?

The PLL1708 supports sampling frequencies of 16, 22.05, 24, 32, 44.1, 48, 64, 88.2, and 96 kHz.
