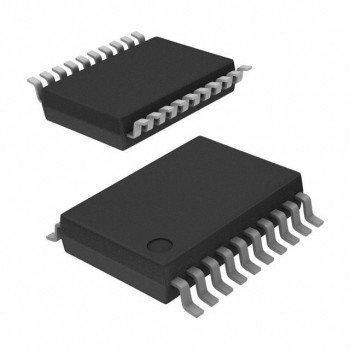

PLL1700E The PLL1700E by B&B Smartworx is a PLL Multi-Clock Generator. It features TTL input, CMOS output, and operates at 3.3V or 5V.
Mfr Part #:

PLL1700E

Available from 1 distributors
Mfr Name: B&B Smartworx
B&B Smartworx
The PLL1700E by B&B Smartworx is a PLL Multi-Clock Generator. It features TTL input, CMOS output, and operates at 3.3V or 5V.
✓ Total Stock: 182 pcs

PLL1700E Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
182 pcs
On Request
182 pcs On Request 1 On Request On Request 94+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PLL1700E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Input
Mounting Type
Number of Circuits
Operating Temperature
Output
PLL
Package / Case
SVHC Present
Supplier Device Package
Type
Voltage Supply
View Similar Products (0)

PLL1700E Description

Short technical summary and product information.

The PLL1700E is a PLL Multi-Clock Generator from B&B Smartworx. This component is designed for clock generation applications, featuring a TTL input and CMOS output.



Key electrical specifications include a maximum frequency of 36.87MHz and a supply voltage range of 3.3V to 5V. The device operates within a temperature range of -25°C to 85°C.



It is housed in a 20-SSOP surface mount package, with dimensions of 0.209 inches (5.30mm) width. The part status is active.



Environmental compliance includes RoHS3 compliance, Moisture Sensitivity Level 1, and REACH unaffected status, though these are currently unverified.

PLL1700E Quick Information

Product Type: Clock Generator
Canonical Name: PLL1700E PLL Multi-Clock Generator
Subcategory: PLL

PLL1700E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PLL1700E Features

  • PLL Multi-Clock Generator with TTL input.
  • CMOS output with a 1:6 ratio.
  • Operates at 3.3V and 5V supply voltages.
  • Surface mountable in a 20-SSOP package.
  • Wide operating temperature range of -25°C to 85°C.

PLL1700E Applications

  • Ideal for clock distribution in digital systems.
  • Used in industrial control and automation equipment.
  • Suitable for telecommunications and networking devices.
  • Applicable in mixed-voltage logic interface circuits.

PLL1700E FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range for the PLL1700E?

The PLL1700E supports supply voltages of 3.3V and 5V.

What package is the PLL1700E available in?

The PLL1700E comes in a 20-SSOP (0.209 inch, 5.30mm width) surface-mount package.

What is the operating temperature range of the PLL1700E?

The device operates from -25°C to 85°C.

What is the maximum clock frequency of the PLL1700E?

The maximum frequency is 36.87 MHz.

What are the input and output signal types?

The input is TTL and the output is CMOS.

How many outputs does the PLL1700E provide?

The device has a 1:6 input-to-output ratio, meaning one input can drive six outputs.

Does the PLL1700E include a phase-locked loop?

Yes, it includes a PLL (phase-locked loop) for frequency generation.
