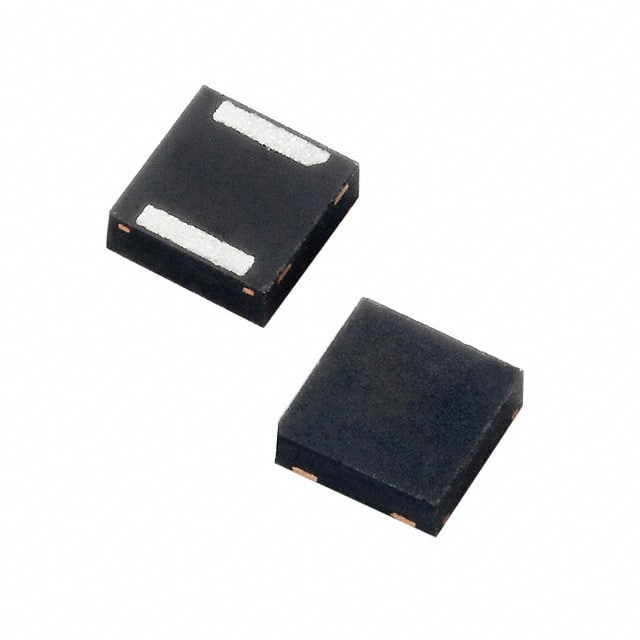

PLED18Q12 PLED18Q12 is an open LED protector from Littelfuse that provides a shunt path when an LED fails open. Breakdown voltage 18V min, on-state current 1A max, in a surface-mount QFN package.
Mfr Part #:

PLED18Q12

Available from 2 distributors
Mfr Name: Littelfuse Inc.
Littelfuse Inc.
PLED18Q12 is an open LED protector from Littelfuse that provides a shunt path when an LED fails open. Breakdown voltage 18V min, on-state current 1A max, in a surface-mount QFN package.
✓ Total Stock: 1,120 pcs
$ Price Range: $0.28 - $1.31

PLED18Q12 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
120 pcs
On Request
120 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PLED18Q12 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Halogen Free
Industrial Grade
Lead Style
Mounting Type
Number of Circuits
Operating Temperature Range
SVHC Present
Storage Temperature
Supplier Device Package
Tape & Reel
Technology
Voltage
View Similar Products (0)

PLED18Q12 Description

Short technical summary and product information.

The PLED18Q12 is part of Littelfuse's PLED Series of open LED protectors. These devices provide a switching electronic shunt path when an LED in a string fails as an open circuit, ensuring the remaining LEDs continue to function.



Key electrical specifications include a minimum breakdown voltage of 18V, minimum off-state voltage of 33V, minimum holding current of 5mA, and minimum switching current of 100mA. The maximum on-state current is 1A with a maximum on-state voltage of 1.2V at 1A. The device supports PWM frequencies up to 30kHz and has a critical rate of rise of off-state voltage of 250V/µs.



The PLED18Q12 is available in a surface-mount package (2-TDFN / 2-QFN 3x3mm) and operates over a junction temperature range of -40°C to +150°C. Thermal resistance is 120°C/W on standard FR-4 PCB and 60°C/W on aluminum PCB. It is RoHS-compliant and halogen-free.

PLED18Q12 Quick Information

Product Type: LED Shunt Protector
Series: PLED
Canonical Name: PLED18Q12 Open LED Protector
Subcategory: Lighting Protection

PLED18Q12 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

PLED18Q12 Estimated Pricing

Qty Low High
1+ $1.31 $1.31
10+ $0.82 $0.82
100+ $0.54 $0.54
500+ $0.42 $0.42
1,000+ $0.35 $0.35
2,500+ $0.35 $0.35
5,000+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

PLED18Q12 Features

  • LED open-circuit protection shunt device.
  • Minimum 18V breakdown voltage.
  • Maximum 1A on-state current.
  • Surface mount QFN 3x3mm package.
  • RoHS compliant and halogen-free.

PLED18Q12 Applications

  • Suitable for outdoor LED street lighting.
  • Used in aircraft runway lighting systems.
  • Ideal for LED signage and warning lights.
  • Compatible with 1-3 watt LED strings.

PLED18Q12 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the breakdown voltage of the PLED18Q12?

The minimum breakdown voltage is 18V.

What is the maximum on-state current?

The maximum on-state current is 1A.

What package is the PLED18Q12 available in?

It is available in a surface mount 2-TDFN (2-QFN 3x3mm) package.

What is the operating temperature range?

The operating junction temperature range is -40°C to +150°C.

Is the PLED18Q12 RoHS compliant?

Yes, the datasheet states it is RoHS compliant and halogen-free.

What is the holding current?

The minimum holding current is 5mA.

What PWM frequency can the PLED18Q12 support?

It supports PWM frequencies up to 30kHz.
