| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
144 pcs
|
144 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Type |

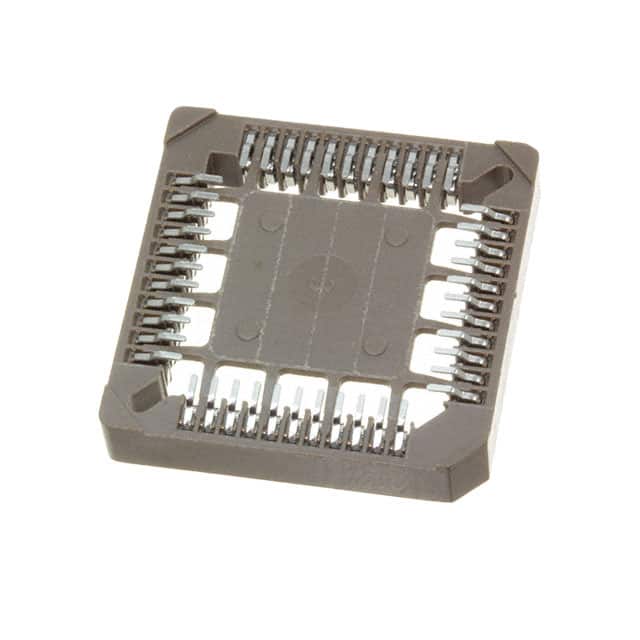

The PLCC-44-AT-SMT is a 44-position PLCC (Plastic Leaded Chip Carrier) socket manufactured by Adam Technologies Inc. It is designed for surface mount applications, enabling easy programming and testing of PLCC packages.
The socket features a closed frame design made from thermoplastic housing with phosphor bronze contacts. The contacts have a tin finish with 80µin thickness. The pitch is 1.27mm, and the socket operates over a temperature range of -55°C to 105°C.
The PLCC-44-AT-SMT is listed as RoHS3 compliant and REACH unaffected, with an MSL of 1 (Unlimited). Note that these compliance statuses are from the existing database and have not been independently verified.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.01 | $1.01 |
| 10+ | $0.87 | $0.87 |
| 25+ | $0.81 | $0.81 |
| 2,500+ | $0.59 | $0.59 |
| 5,000+ | $0.57 | $0.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
44 positions arranged in a 4x11 grid.
1.27mm (0.050").
Surface mount.
-55°C to 105°C.
The part is listed as RoHS3 compliant, but this has not been verified.
