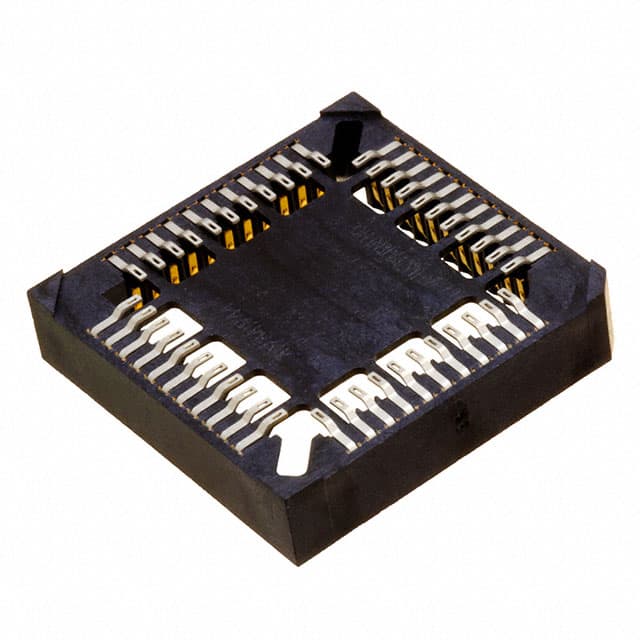

PLCC-044-F-N PLCC-044-F-N is a 44-position PLCC socket from Samtec, featuring a surface mount design with tin-plated beryllium copper contacts and a closed frame housing made of LCP.
Mfr Part #:

PLCC-044-F-N

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
PLCC-044-F-N is a 44-position PLCC socket from Samtec, featuring a surface mount design with tin-plated beryllium copper contacts and a closed frame housing made of LCP.
✓ Total Stock: 6 pcs

PLCC-044-F-N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
NTD Electronics ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PLCC-044-F-N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Finish Thickness
Contact Material
Features
Halogen Free
Housing Material
Lead Spacing
Lead Style
Mounting Type
Number of Positions or Pins (Grid)
Operating Temperature
Packaging Quantity
Packaging Type
Pitch
Prop 65
SVHC Present
Tape & Reel
Termination
Type
View Similar Products (0)

PLCC-044-F-N Description

Short technical summary and product information.

The PLCC-044-F-N is a surface mount PLCC socket from Samtec, designed for 44-position IC packages in a 4x11 grid. It features a 0.100" (2.54mm) pitch and solder termination, making it suitable for automated assembly. The contacts are made of beryllium copper with a tin flash, ensuring reliable electrical connections. The housing is constructed from liquid crystal polymer (LCP) with a closed frame design, providing robust mechanical support and a wide operating temperature range from -55°C to 125°C.



The socket is packaged in tubes of 25 pieces. Compliance includes RoHS3, REACH (no SVHCs), and MSL Level 1 (not moisture sensitive). It is also halogenated penta octa compliant. Note that this part is listed as obsolete by the manufacturer; verify availability with authorized distributors. The datasheet for this part currently references a different model (PLCC-028-T-N) and should be corrected.

PLCC-044-F-N Quick Information

Product Type: IC Socket
Series: PLCC
Canonical Name: PLCC-044-F-N Surface Mount PLCC Socket, 44 Positions
Subcategory: PLCC Socket

PLCC-044-F-N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: Compliant
Lead Free: Yes

PLCC-044-F-N Features

  • 44-position PLCC socket with 0.100" pitch.
  • Surface mount solder termination.
  • Beryllium copper contacts with tin flash.
  • Closed frame LCP housing.
  • Wide operating temperature range -55°C to 125°C.

PLCC-044-F-N Applications

  • Ideal for programming PLCC devices.
  • Used in prototype and production sockets.
  • Suitable for surface mount PCB assembly.
  • Common in embedded systems and industrial controls.

PLCC-044-F-N FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the PLCC-044-F-N have?

The PLCC-044-F-N has 44 positions arranged in a 4x11 grid.

What is the pitch of this PLCC socket?

The pitch is 0.100" (2.54mm).

What is the mounting type for PLCC-044-F-N?

It is a surface mount socket with solder termination.

What is the contact material and finish?

The contacts are made of beryllium copper with a tin flash finish.

What is the housing material of the socket?

The housing is made of liquid crystal polymer (LCP).

Is this socket RoHS compliant?

Yes, it is listed as RoHS3 compliant (unverified).
