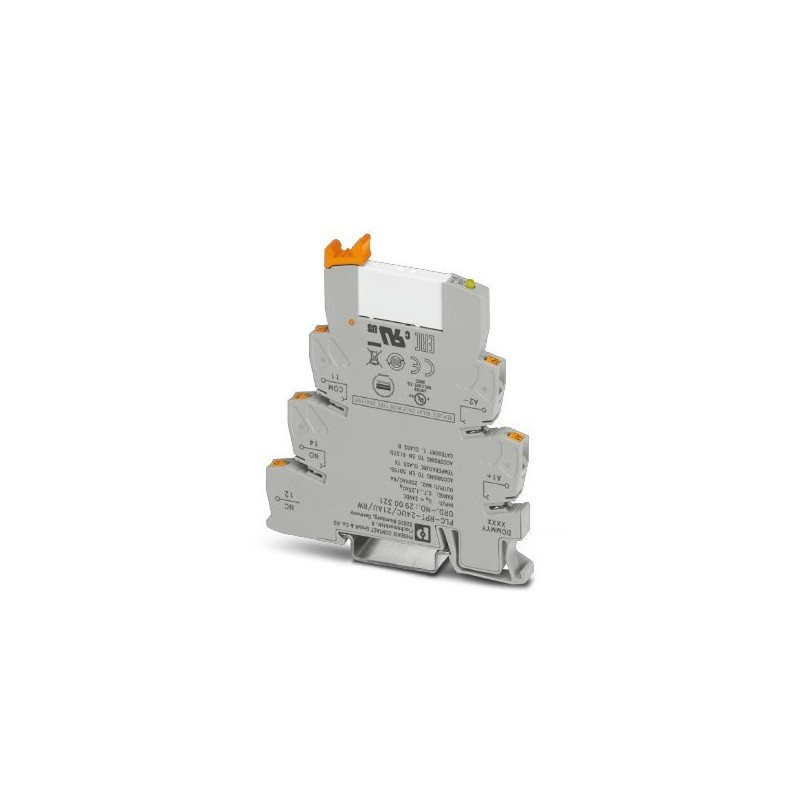

The Phoenix Contact PLC-RPT- 24UC/21AU/RW is a relay module from the PLC-INTERFACE series, specifically designed for demanding railway applications. This module consists of a base terminal block with a push-in connection and a plug-in miniature relay equipped with a multilayer gold contact.
Key electrical specifications include a nominal input voltage of 24 VDC with an operating range of 0.7 to 1.25 times UN. It has a typical input current of 9 mA, a response time of 4 ms, and a release time of 4 ms. The module features a 1 PDT contact type with AgSnO hard gold-plated contacts. It can handle a maximum switching voltage of 30 VAC or 36 VDC and a limiting continuous current of 50 mA.
Mechanically, the relay module has a compact width of 6.2 mm, a height of 80 mm, and a depth of 94 mm. It operates within an ambient temperature range of -40 °C to 70 °C (TX temperature class) and can be stored between -40 °C to 85 °C. The module includes protective circuitry such as a bridge rectifier and a free-wheeling diode, with an LED indicator for operating voltage.
This product is supplied in a packing unit of 10 pieces and is noted as 'Made to Order' and non-returnable. Its country of origin is Germany.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal input voltage is 24 VDC.
It features a 1 PDT (Single Pole Double Throw) contact type.
The operating temperature range is -40 °C to 70 °C.
The switching capacity at 230 VAC (AC15) is 3 A.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
