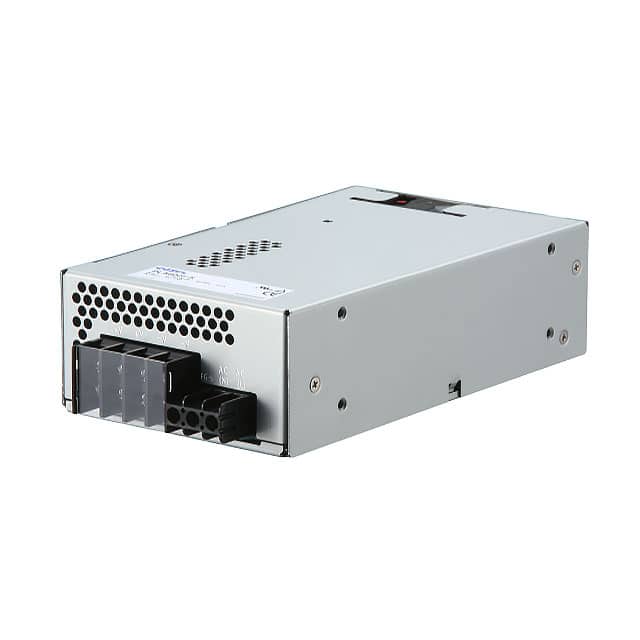

The Cosel PLA600F-36-V is an enclosed AC/DC power supply designed for ITE (Commercial) applications. It delivers a stable 36V output with a maximum current of 16.7A, providing a total wattage of 600W. The unit boasts a high efficiency of 88% and operates reliably within a wide temperature range of -20°C to 70°C.
Featuring a chassis mount type, this converter is suitable for integration into various systems. It meets stringent safety and EMI standards, including CE, cURus, TUV approvals, and compliance with FCC-B, CISPR22-B, EN55011-B, EN55022-B, and VCCI-B. The input voltage range is universal, accepting AC85 - 264V.
Key electrical specifications include a dielectric strength of 3kV and compliance with harmonic attenuator standards (IEC61000-3-2 class A). The unit also complies with SEMI F-47 standards when the -U option is selected. It comes with a 5-year warranty.
The output voltage is 36V.
The maximum output current is 16.7A.
The total wattage is 600W.
The efficiency is 88%.
The operating temperature range is -20°C to 70°C.
It supports a universal input voltage range of AC85 - 264V.
It uses chassis mount.
