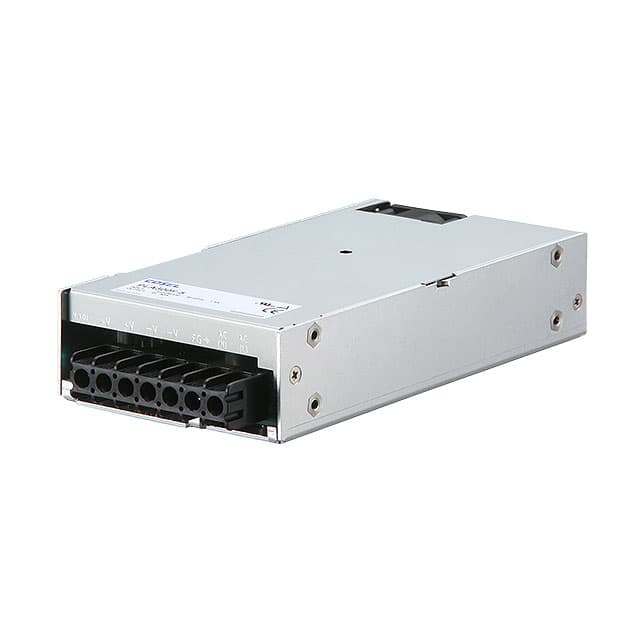

The Cosel PLA300F-15 is an enclosed AC DC converter designed for ITE (Commercial) applications. It features a universal input voltage range of AC85 - 264V and provides a stable 15V output with a maximum current of 20A, delivering up to 300W of power.
This converter operates within a wide temperature range of -20°C to 70°C, with derating required at lower input voltages and higher temperatures. It complies with various safety and emission standards, including CE, cURus, TUV, FCC-B, and CISPR22-B, ensuring reliable performance in demanding environments. The unit is designed for chassis mounting and has dimensions of 190.0mm x 102.1mm x 40.9mm.
Key electrical specifications include a typical efficiency of 75.5% at ACIN 230V, line regulation of 60mV maximum, and load regulation of 120mV maximum. The start-up time is typically 200ms. The PLA300F-15 also includes features like harmonic attenuation compliant with IEC61000-3-2 class A and meets DEN-AN requirements.
85-264 VAC.
15V at 20A (300W).
-20°C to 70°C with derating required.
Up to 75.5% at 230VAC full load.
UL60950-1, C-UL (CSA60950-1), EN62368-1, UL508 (PLA15F-150F).
FCC-B, CISPR22-B, EN55011-B, EN55022-B, VCCI-B.
Enclosed chassis mount, 190.0mm x 102.1mm x 40.9mm.
