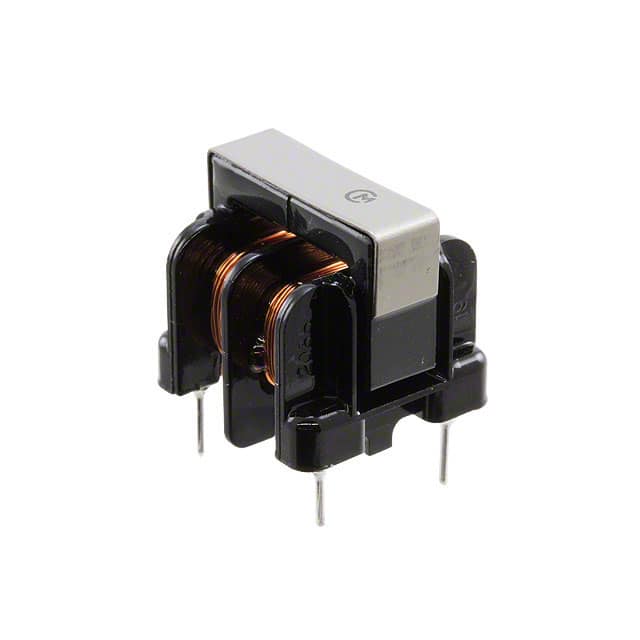

PLA10AS1030R7R2B The Murata PLA10AS1030R7R2B is a common mode choke designed for power line filtering. It features a 700mA current rating and 250V voltage rating.
Mfr Part #:

PLA10AS1030R7R2B

Available from 1 distributors
Mfr Name: Murata
Murata
The Murata PLA10AS1030R7R2B is a common mode choke designed for power line filtering. It features a 700mA current rating and 250V voltage rating.
✓ Total Stock: 1 pcs
$ Price Range: $0.99

PLA10AS1030R7R2B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PLA10AS1030R7R2B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Max)
DC Resistance (DCR) (Max)
Filter Type
Height
Height (Max)
Length
Mounting Type
Number of Lines
Operating Temperature
Voltage Rating
Width
View Similar Products (0)

PLA10AS1030R7R2B Description

Short technical summary and product information.

The Murata PLA10AS1030R7R2B is a common mode choke suitable for power line filtering applications. It offers a maximum current rating of 700mA and a voltage rating of 250V.



This component features a DC resistance (DCR) of 860mOhm (max) and operates within a temperature range of -25°C to 60°C. The choke has a length of 18.00mm and a width of 16.00mm, with a maximum height of 17.50mm.



Designed for through-hole mounting, the PLA10AS1030R7R2B has a vertical, 4 PC pin package. It has 2 lines and is RoHS3 compliant. The Moisture Sensitivity Level (MSL) is 1 Unlimited, and it is REACH Unaffected.

PLA10AS1030R7R2B Quick Information

Product Type: Common Mode Choke
Canonical Name: Murata PLA10AS1030R7R2B Common Mode Choke

PLA10AS1030R7R2B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PLA10AS1030R7R2B Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

PLA10AS1030R7R2B Features

  • 700mA maximum current rating.
  • 250V voltage rating.
  • Through-hole mounting type.
  • RoHS3 compliant.
  • Operating temperature -25°C to 60°C.

PLA10AS1030R7R2B Applications

  • Suitable for power line filtering applications.
  • Used in common mode choke circuits.
  • Ideal for EMI suppression in electronic devices.
  • Applicable in industrial power supply filtering.
  • Designed for thermal and electrical stability in circuits.

PLA10AS1030R7R2B FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current rating of the PLA10AS1030R7R2B?

The maximum current rating is 700mA.

What is the voltage rating for this common mode choke?

The voltage rating is 250V.

What is the operating temperature range?

The operating temperature range is -25°C to 60°C.

How is the PLA10AS1030R7R2B mounted?

It is designed for through-hole mounting.

What is the RoHS status of this component?

It is RoHS3 Compliant.
