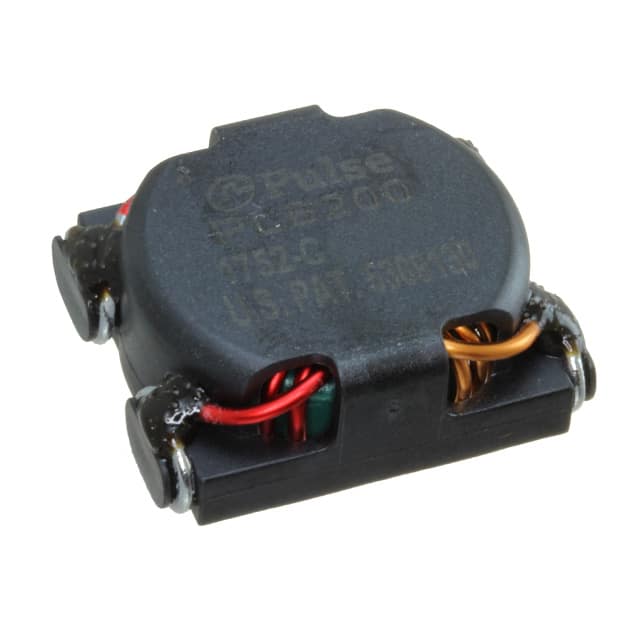

PL8200 The INRCORE PL8200 is a 2-line common mode choke designed for power line filtering. It features a Surface Mount package and a maximum current rating of 14A.
Mfr Part #:

PL8200

Available from 1 distributors
Mfr Name: Inrcore
Inrcore
The INRCORE PL8200 is a 2-line common mode choke designed for power line filtering. It features a Surface Mount package and a maximum current rating of 14A.
✓ Total Stock: 10 pcs
$ Price Range: $0.99

PL8200 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PL8200 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Max)
DC Resistance (DCR) (Max)
Filter Type
Height (Max)
Length
Mounting Type
Number of Lines
Operating Temperature
Tape & Reel
Width
View Similar Products (0)

PL8200 Description

Short technical summary and product information.

The INRCORE PL8200 is a common mode choke filter designed for power line applications. This component offers a current rating of up to 14A and operates within a temperature range of -55°C to 130°C.



Featuring a Surface Mount package with 4 PC pads, the PL8200 has a horizontal orientation. Its dimensions are 30.99mm in length and 25.40mm in width, with a maximum height of 12.70mm. The choke has a DC resistance (DCR) of 8mOhm (Max) and supports 2 lines.



This common mode choke is suitable for applications requiring noise suppression and filtering in power circuits. Its robust construction and operating temperature range make it a reliable choice for various industrial and electronic systems.

PL8200 Quick Information

Product Type: Common Mode Choke
Canonical Name: INRCORE PL8200 Common Mode Choke
Subcategory: Common Mode Choke

PL8200 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PL8200 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

PL8200 Features

  • Rated for 14A maximum current.
  • Features 2 lines for filtering.
  • Surface Mount package for easy integration.
  • Wide operating temperature range.
  • Low DC resistance of 8mOhm.

PL8200 Applications

  • Ideal for power line noise filtering.
  • Used in electronic power supply circuits.
  • Suitable for industrial control systems.
  • Applicable in noise-sensitive equipment.

PL8200 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the PL8200?

The operating temperature range is -55°C to 130°C.

What is the maximum current rating for this common mode choke?

The maximum current rating is 14A.

What is the DC resistance (DCR) of the PL8200?

The maximum DC resistance (DCR) is 8mOhm.

How many lines does the PL8200 common mode choke have?

The PL8200 has 2 lines.

What type of package is the PL8200 common mode choke in?

It is in a Surface Mount package.
