| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
70 pcs
|
70 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Type | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Operating Voltage | |
| Shielding | |
| Termination | |
| Termination Style |

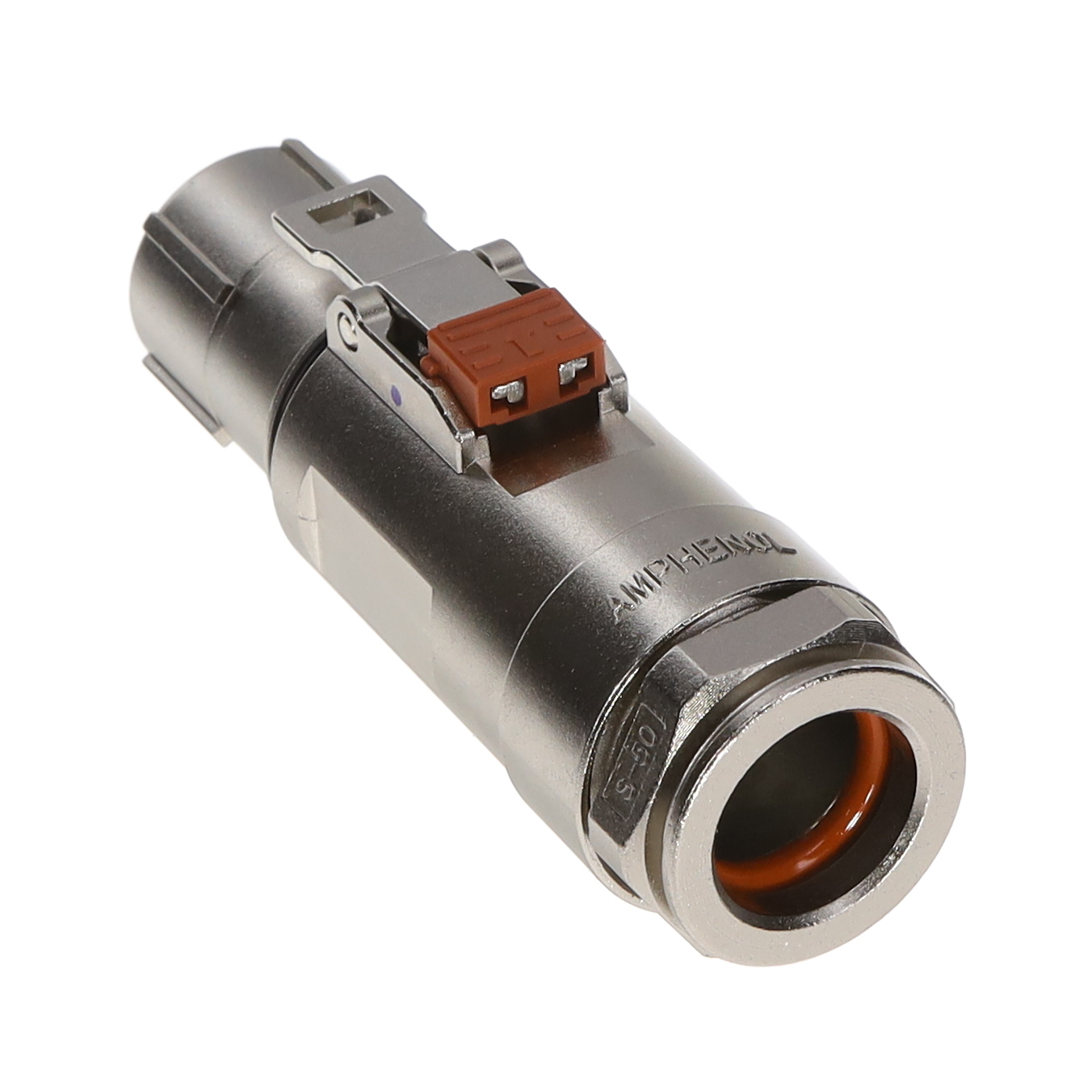

The PL18W-301-50 is a 1-position plug connector from the PowerLok 10mm series by Amphenol Technical Products. Designed for high-power applications, it supports a maximum continuous current of 200A with a cable size of 50mm², operating at up to 1000 VDC. The connector offers robust environmental protection with IP67 and IP2X ratings, and includes full shielding.
Crimp termination ensures a reliable and durable connection, while a latch lock fastening mechanism secures the mating interface. The plug features an automatic secondary lock and a high voltage interlock (HVIL) for added safety in high-voltage systems. The color is red, and the part number suffix 301 indicates HVIL is present.
With a minimum of 500 mating cycles, this connector is built for repeated use in demanding conditions. It operates across a temperature range of -40°C to 125°C and can withstand a dielectric withstanding voltage of 5000 VDC. The mating receptacle is the PL00-300, making it suitable for battery, inverter, and motor connections in electric vehicles and energy storage systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $70.96 | $70.96 |
| 10+ | $60.98 | $60.98 |
| 25+ | $57.30 | $57.30 |
| 60+ | $55.99 | $55.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
200A at 50mm² cable size.
Up to 1000 VDC.
Free hanging (in-line).
-40°C to 125°C.
IP67 and IP2X.
Yes, the part number suffix 301 indicates HVIL present.
The PL00-300 (matching receptacle per datasheet drawing).
