| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,712 pcs
|
1712 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
988 pcs
|
988 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
669 pcs
|
669 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
252 pcs
|
252 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Driver Circuitry | |
| Frequency | |
| Height | |
| Input Type | |
| Length | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Port Location | |
| Sound Pressure Level (SPL) | |
| Technology | |
| Termination | |
| Voltage | |
| Voltage Range | |
| Width |

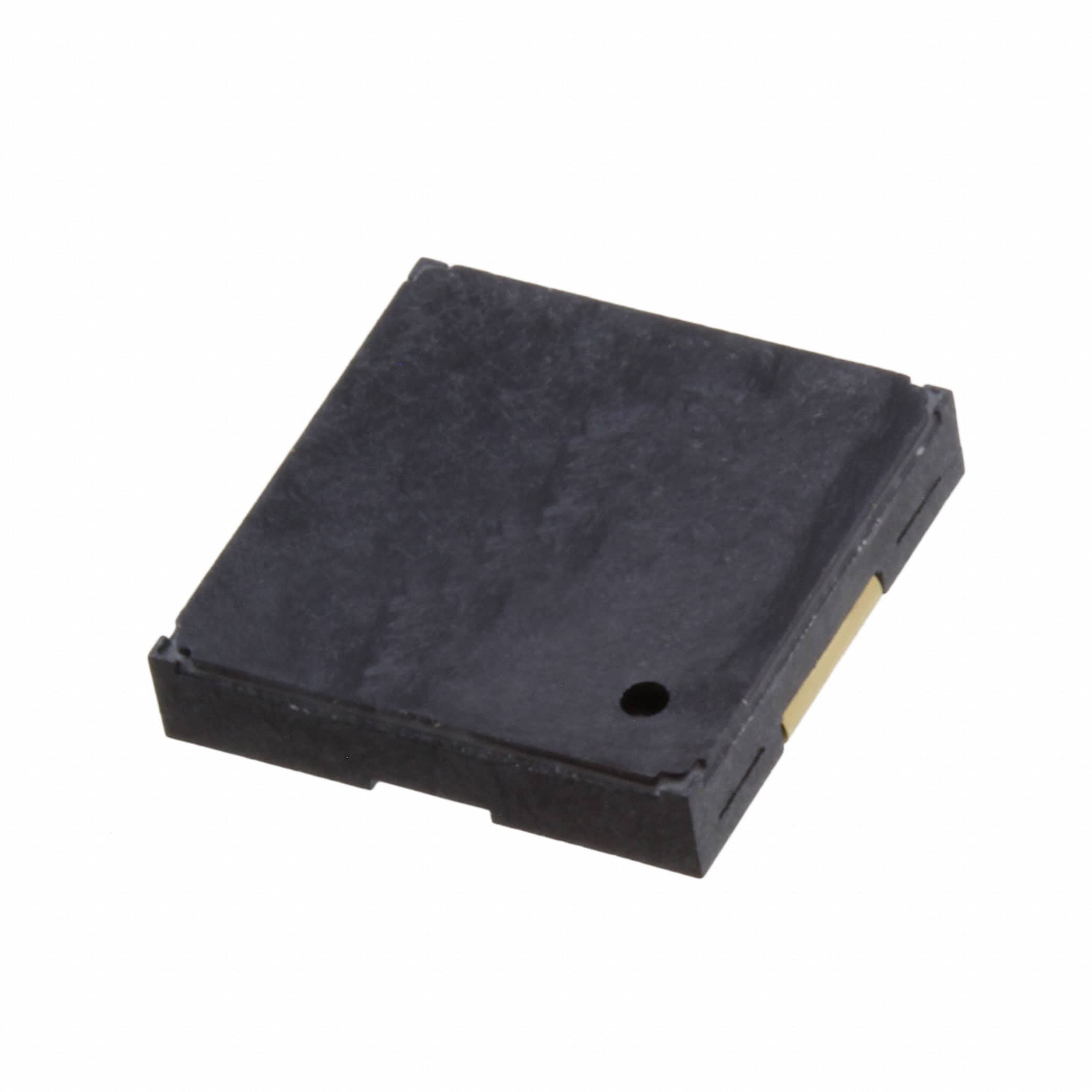

This Murata PKMCS0909E4000-R1 is a piezo buzzer with a compact 9x9mm SMD package. It is designed for single tone operation and requires an externally driven signal.
The buzzer operates at a nominal voltage of 1.5V, with a maximum voltage range of 12.5V. Its frequency is typically 4kHz, producing a sound pressure level of 65dB at 10cm when driven at 1.5V. The operating temperature range is from -40°C to 85°C.
Featuring a surface mount design, this buzzer is intended for integration onto PCBs using solder pads for termination. The port location is on the side of the unit. Its dimensions are 9.00mm in length and 9.00mm in width, with a height of 1.90mm.
This component is suitable for various alarm and signaling applications where a compact and reliable audio output is required. It is RoHS3 compliant, has an MSL of 1, and is REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal operating voltage is 1.5V, with a maximum voltage range of 12.5V.
The typical frequency is 4kHz.
The sound pressure level is 65dB at 1.5V and 10cm distance.
This buzzer is designed for surface mount (SMD) installation.
The buzzer measures 9.00mm in length, 9.00mm in width, and 1.90mm in height.
