| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100,000 pcs
|
100000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Diameter | |
| Driver Circuitry | |
| Frequency | |
| Height | |
| Industrial Grade | |
| Input Type | |
| Lead Style | |
| Maximum Input Voltage | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Port Location | |
| SVHC Present | |
| Sound Pressure Level (SPL) | |
| Storage Temperature | |
| Tape & Reel | |
| Technology | |
| Termination | |
| Termination Style | |
| Voltage | |
| Voltage Range |

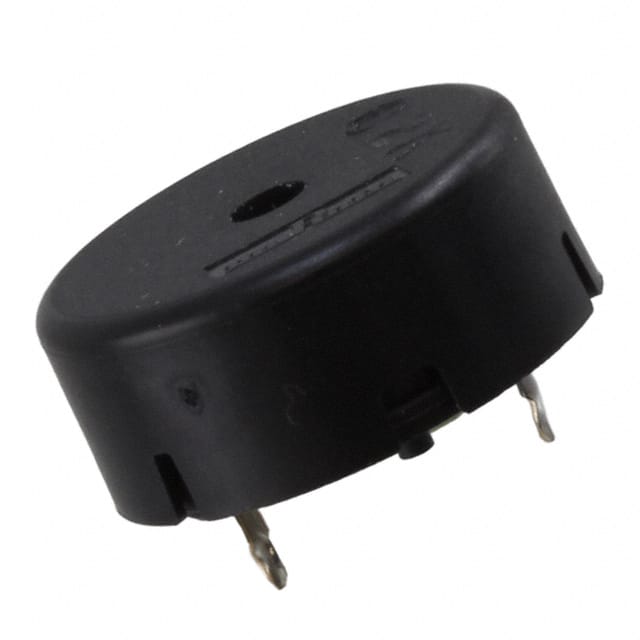

The PKM17EPPH4002-B0 is a piezoelectric sounder from Murata designed for alarm and buzzer applications. It produces a minimum sound pressure level of 72dB when driven with a 1.5V, 4kHz square wave at 10cm distance. The component has a nominal capacitance of 7.0nF ±30% at 1kHz. It operates over a temperature range of -20°C to +70°C and can be stored from -40°C to +80°C. The buzzer is externally driven and requires a zero-peak signal input. It is a single tone device. The package is a through-hole type with a diameter of 17.00mm and height of 8.70mm. Termination is via PC pins, and the sound port is located on the top. The maximum input voltage is ±12.5Vo-p. The component is RoHS3 compliant (unverified) and has an MSL of 1 (unlimited). This buzzer is suitable for use in various electronic devices requiring audible alerts.
The maximum input voltage is ±12.5Vo-p.
The nominal frequency is 4kHz.
The minimum sound pressure level is 72dB at 1.5V, 10cm, with a 4kHz square wave.
It is a transducer that requires an external driving circuit.
Through hole mounting with PC pin termination.
The nominal capacitance is 7.0nF ±30% at 1kHz.
-20°C to +70°C.
