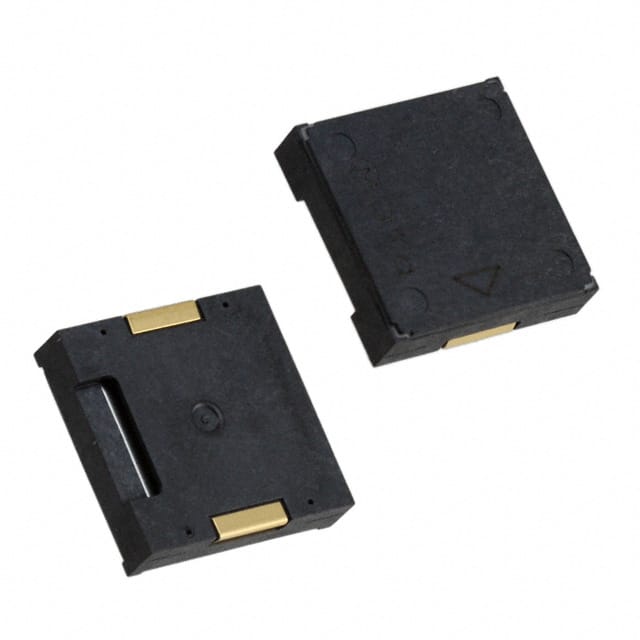

PKLCS1212E40A1-R1 SMD piezo sounder, 4kHz, 1.5V, 75dB @ 10cm, externally driven, side port. Ideal for audible alerts in compact designs.
Mfr Part #:

PKLCS1212E40A1-R1

Available from 2 distributors
Mfr Name: Murata
Murata
SMD piezo sounder, 4kHz, 1.5V, 75dB @ 10cm, externally driven, side port. Ideal for audible alerts in compact designs.
✓ Total Stock: 3,649 pcs
$ Price Range: $0.55 - $1.27

PKLCS1212E40A1-R1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
3,421 pcs
On Request
3421 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
228 pcs
On Request
228 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PKLCS1212E40A1-R1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Driver Circuitry
Frequency
Height
Input Type
Lead Style
Length
Mounting Type
Operating Mode
Operating Temperature
Port Location
Sound Pressure Level (SPL)
Tape & Reel
Technology
Termination
Voltage
Voltage Range
Width
View Similar Products (0)

PKLCS1212E40A1-R1 Description

Short technical summary and product information.

The PKLCS1212E40A1-R1 is a piezoelectric sounder manufactured by Murata. It operates at a resonant frequency of 4kHz with a single tone operating mode. The driver type is externally driven, requiring a zero-peak signal input. The rated voltage is 1.5V, with a maximum voltage of 25V. It produces a sound pressure level of 75dB at 10cm when driven at 1.5V.



This sounder features a side port location and is designed for surface mount assembly with solder pad termination. The package measures 12.00mm x 12.00mm with a height of 3.00mm. It operates over a temperature range of -40°C to 85°C. The component is RoHS3 compliant and has an MSL rating of 1 (unlimited).



Typical applications include alarm systems, medical devices, and consumer electronics requiring a compact audible indicator. The packaging is plastic taping for automated pick-and-place.

PKLCS1212E40A1-R1 Quick Information

Product Type: Piezo Sounder
Series: E40A1
Canonical Name: Murata PKLCS1212E40A1-R1 Piezo Sounder, 4kHz, 1.5V, 75dB, SMD
Subcategory: SMD Piezo Sounder

PKLCS1212E40A1-R1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PKLCS1212E40A1-R1 Estimated Pricing

Qty Low High
1+ $1.27 $1.27
10+ $0.97 $0.97
25+ $0.88 $0.88
50+ $0.81 $0.81
100+ $0.75 $0.75
250+ $0.69 $0.69
500+ $0.64 $0.64
1,000+ $0.57 $0.57
5,000+ $0.55 $0.55

Estimated market price range - modelled values for guidance only, not live distributor offers.

PKLCS1212E40A1-R1 Features

  • Piezoelectric sounder with 4kHz resonant frequency.
  • Externally driven transducer requiring zero-peak signal.
  • Rated for 1.5V operation with 75dB SPL output.
  • Compact SMD package measuring 12mm square.
  • RoHS3 compliant with MSL 1 rating.

PKLCS1212E40A1-R1 Applications

  • Ideal for alarm and alert indicators.
  • Suitable for medical device alerts.
  • Used in consumer electronics for audible feedback.
  • Compact design for space-constrained PCBs.
  • Can be integrated into portable devices.

PKLCS1212E40A1-R1 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the rated voltage of this piezo sounder?

1.5V with a maximum of 25V.

What is the operating frequency?

4kHz.

What is the sound pressure level?

75dB at 10cm when driven at 1.5V.

Does this sounder require an external drive?

Yes, it is an externally driven transducer requiring a zero-peak signal.

What is the mounting type and package size?

Surface mount with solder pads; package 12mm x 12mm x 3mm.

What is the operating temperature range?

-40°C to 85°C.
