| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Diameter | |
| Driver Circuitry | |
| Frequency | |
| Height | |
| Input Type | |
| Lead Style | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Port Location | |
| Sound Pressure Level (SPL) | |
| Storage Temperature | |
| Tape & Reel | |
| Technology | |
| Termination | |
| Voltage | |
| Voltage Range |

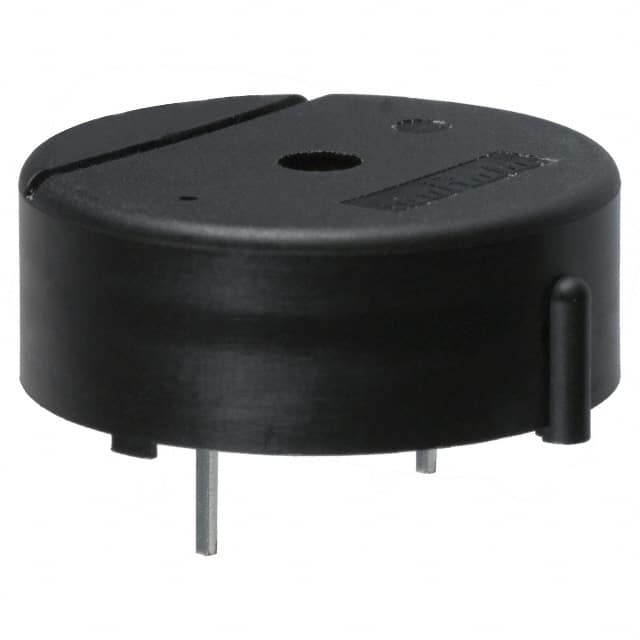

The Murata PKB24SPCH3601-B0 is a piezo buzzer with a part number of 490-4702-ND. This component is designed for audio signaling and features a through-hole mounting type for easy integration into circuit boards.
Key electrical specifications include a nominal voltage of 12V, with a voltage range of 3V to 15V. It operates at a frequency of 3.6kHz and produces a sound pressure level (SPL) of 90dB measured at 10cm distance when driven at 12V. The buzzer has a single tone operating mode and an internally driven circuitry.
Mechanically, the buzzer has a diameter of 24.30mm and a height of 10.00mm. The port location is at the top, and it uses PC pins for termination. The operating temperature range is from -20°C to 70°C.
This component is classified under Alarms, Buzzers, and Sirens. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 12V.
The sound pressure level is 90dB at 12V and 10cm.
The diameter is 24.3mm.
It uses through-hole mounting with PC pins.
-20°C to 70°C.
