PK30X256VLQ100 The Freescale Semiconductor PK30X256VLQ100 is a 32-bit ARM Cortex-M4 microcontroller featuring 256KB of FLASH program memory and 64KB of RAM. It operates at speeds up to 100MHz.
Mfr Part #:

PK30X256VLQ100

Available from 1 distributors
Mfr Name: Freescale Semiconductor
Freescale Semiconductor
The Freescale Semiconductor PK30X256VLQ100 is a 32-bit ARM Cortex-M4 microcontroller featuring 256KB of FLASH program memory and 64KB of RAM. It operates at speeds up to 100MHz.
✓ Total Stock: 2,500 pcs
$ Price Range: $6.40

PK30X256VLQ100 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request 1111/ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PK30X256VLQ100 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
EEPROM Size
Lead Spacing
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Package / Case
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

PK30X256VLQ100 Description

Short technical summary and product information.

This Freescale Semiconductor microcontroller, part number PK30X256VLQ100, is based on the ARM Cortex-M4 core and operates at up to 100MHz. It offers 256KB of FLASH program memory and 64KB of RAM, along with 4KB of EEPROM.



Key electrical specifications include an operating voltage range of 1.71V to 3.6V and 37x16-bit Analog-to-Digital converters and 2x12-bit Digital-to-Analog converters. Connectivity options include CANbus, EBI/EMI, I2C, IrDA, SD, SPI, and UART/USART.

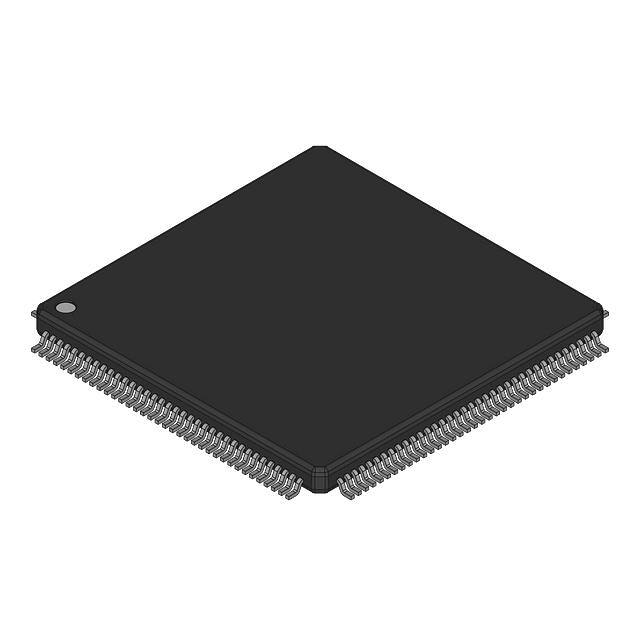

The device is housed in a 144-LQFP package and supports surface mount installation. It operates within a temperature range of -40°C to 105°C (TA). Peripherals include DMA, I2S, LCD, LVD, POR, PWM, and WDT, with 102 I/O lines available.

PK30X256VLQ100 Quick Information

Product Type: Microcontroller
Series: Kinetis Cortex-M4
Canonical Name: Freescale Semiconductor PK30X256VLQ100 Microcontroller
Subcategory: Embedded

PK30X256VLQ100 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PK30X256VLQ100 Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

PK30X256VLQ100 Features

  • 32-bit ARM Cortex-M4 core processor.
  • Operates at a maximum speed of 100MHz.
  • 256KB FLASH program memory size.
  • 64K x 8 RAM size.
  • 144-LQFP surface mount package.

PK30X256VLQ100 Applications

  • Suitable for embedded control systems.
  • Used in applications requiring CANbus interface.
  • Ideal for systems needing SPI and UART communication.
  • Supports LCD display interfaces.

PK30X256VLQ100 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the PK30X256VLQ100?

The operating voltage range is 1.71 V to 3.6 V.

What package type is the PK30X256VLQ100 available in?

The PK30X256VLQ100 is available in a 144-LQFP package.

What is the operating temperature range for this microcontroller?

The operating temperature range is -40°C to 105°C (TA).

What is the program memory size of the PK30X256VLQ100?

The program memory size is 256KB (256K x 8).

What is the RAM size for the PK30X256VLQ100?

The RAM size is 64K x 8.

What is the core processor of the PK30X256VLQ100?

The core processor is ARM Cortex-M4.

What is the speed of the PK30X256VLQ100 microcontroller?

The speed is 100 MHz.
