| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Container Type | |
| Design | |
| Features | |
| Height | |
| Length | |
| Material | |
| Operating Temperature Range | |
| Ratings | |
| Width |

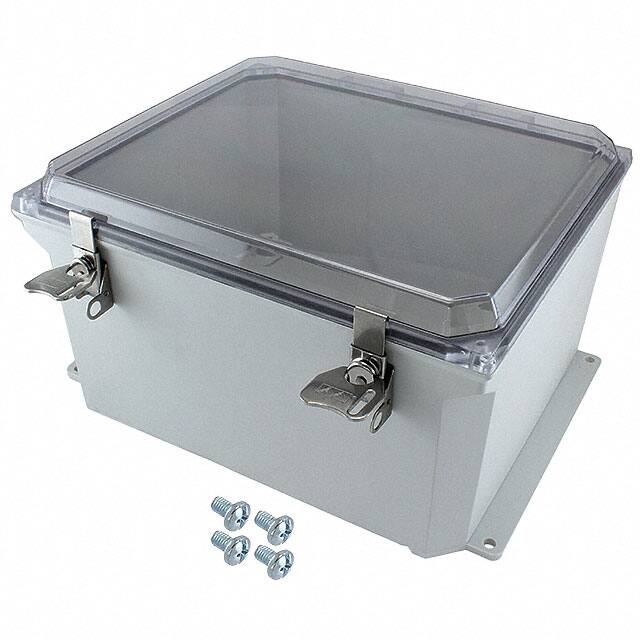

The Hammond Manufacturing PJU12106CCTF is a Type 4X polyester junction box designed for demanding industrial environments. It features a molded fiberglass polyester body with a clear polycarbonate hinged door, providing excellent corrosion resistance and UV protection. The enclosure measures 317.50mm (12.500") in length, 272.29mm (10.720") in width, and 178.05mm (7.010") in height.
This enclosure is rated IP66 and NEMA 1, 2, 3, 4, 4X, 12, 13, and UL 508, making it suitable for indoor and outdoor applications where equipment may be hosed down or exposed to corrosive environments. It includes a mounting flange, PCB supports, and stainless steel butterfly twist latch fasteners with padlocking provisions. The operating temperature range is -40°C to 130°C, and it has an impact index of 6.78 J.
The gray body with clear cover allows visual inspection of internal components. Threaded brass inserts are provided for optional inner panel or terminal kit mounting. The enclosure is RoHS3 and REACH compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $227.30 | $227.30 |
| 5+ | $221.55 | $221.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Length: 317.50mm (12.500"), Width: 272.29mm (10.720"), Height: 178.05mm (7.010").
It is rated NEMA 1, 2, 3, 4, 4X, 12, 13 and IP66.
-40°C to 130°C.
Yes, it is RoHS3 compliant.
Plastic, fiberglass/polyester, and polycarbonate (clear cover/door).
2.72 kg (6 lbs).
