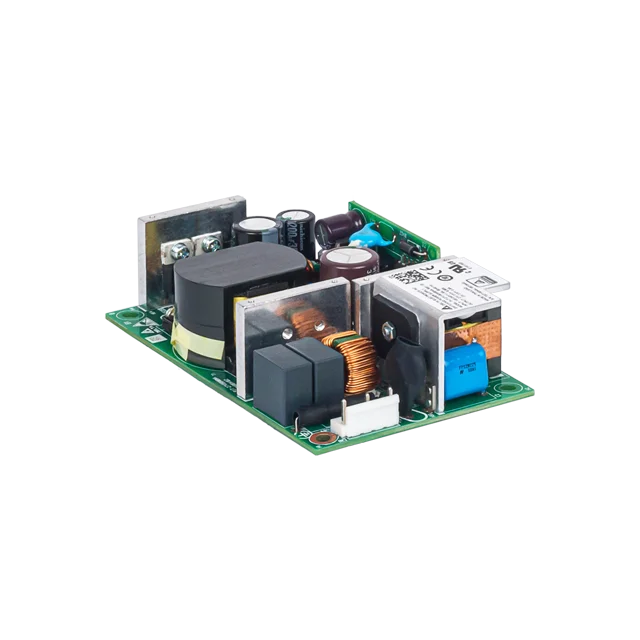

The Delta Electronics PJT-27V150WBNA is an open frame AC/DC power supply designed for industrial applications. It features a universal AC input voltage range of 85-264 Vac and delivers a nominal main output of 27 Vdc at 5.55 A, along with a 12 Vdc standby output at 0.5 A. This model provides 150W of continuous power and includes a power boost capability of up to 175W for 5 seconds.
With a focus on efficiency, the PJT-27V150WBNA boasts up to 89.5% efficiency and incorporates active PFC, conforming to harmonic current standards like IEC/EN 61000-3-2 Class A. It operates within a wide temperature range of -10°C to 70°C with derating. The unit is convection cooled and designed with a standard industrial 3" x 5" footprint, measuring 127 x 76.2 x 36.5 mm.
Safety certifications include IEC/EN/UL 62368-1 and IEC/UL 60950-1, along with EMI compliance to EN 55022, EN55032, and FCC Title 47 Class B. The power supply is suitable for ITE (Commercial) applications and is approved by agencies such as CB Scheme, CE, and UL.
85-264 Vac.
Main output: 27V at 5.55A. Standby output: 12V at 0.5A.
-10°C to +70°C with derating; convection cooling up to +50°C.
Open frame, chassis mount.
Up to 89.5% at 230 Vac, >88.5% at 115 Vac.
Yes, active PFC with power factor >0.99 at 115 Vac.
IEC/EN/UL 62368-1 and IEC/UL 60950-1.
