| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

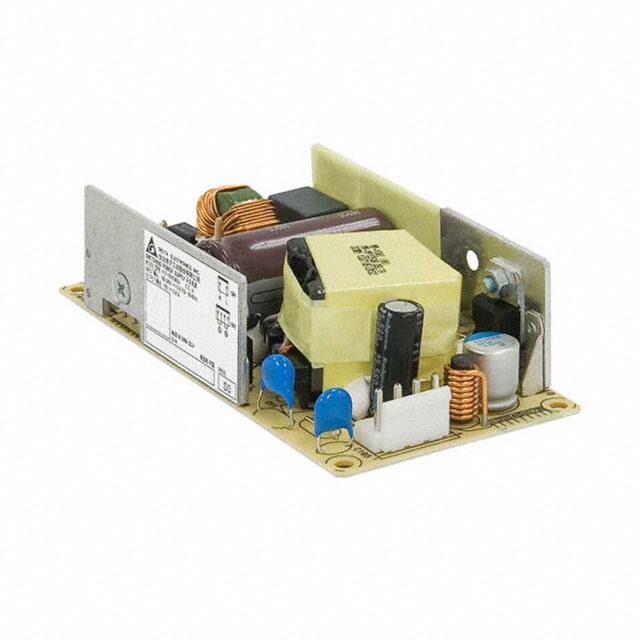

The Delta Electronics PJT-24V65WBAA is an open frame AC/DC power supply designed for ITE (Commercial) applications. It delivers a 65W output power with a nominal output voltage of 24Vdc and a rated output current of 2.71A.
This converter operates with a universal AC input voltage range of 90-264 Vac and a frequency range of 47-63 Hz. It boasts high efficiency, typically 87% at 100% load, and features a low leakage current of less than 0.1 mA. The operating temperature range is -10°C to +70°C with derating.
Designed with a standard industrial footprint of 2" x 4", the PJT-24V65WBAA has dimensions of 101.6 x 50.8 x 30 mm. It is suitable for chassis mounting and is certified for safety standards including IEC/EN/UL 62368-1 and EMI standards EN /BS EN 55032 Class B. The unit has a high MTBF rating of over 700,000 hours as per Telcordia SR-332.
90-264 Vac.
24 Vdc at 2.71 A, 65W.
-10°C to 70°C with derating.
Open frame, chassis mount with JST connector.
IEC/EN/UL 62368-1.
87% typical at 115 Vac, 88% at 230 Vac.
>700,000 hours per Telcordia SR-332.
