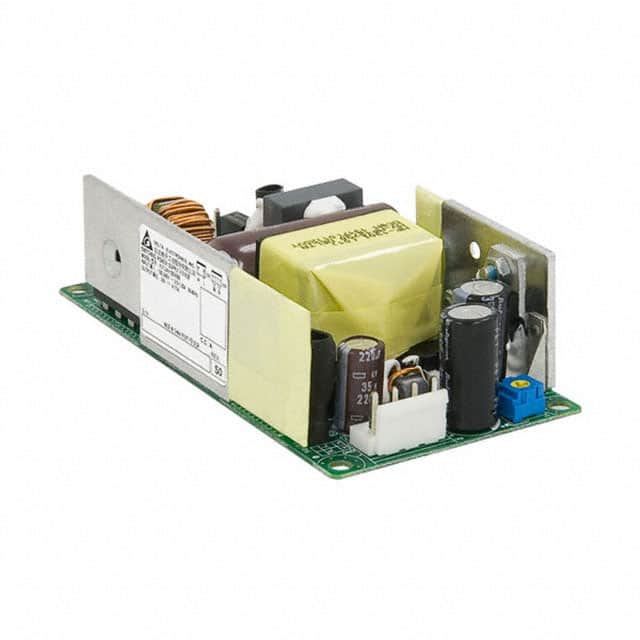

The Delta Electronics PJT-24V100WBBA is an open frame AC/DC converter designed for ITE (Commercial) applications. It offers a power output of 80W, with a capability of 100W using forced air.
Key electrical specifications include an efficiency of 89% and a current rating of 3.33A. The unit features adjustable output and universal input, providing flexibility in design. The operating temperature range is -10°C to 70°C with derating.
Mechanically, this converter has a chassis mount type and dimensions of 101.6mm x 50.8mm x 31.8mm. It is approved by CB, CE, cURus, and TUV, ensuring compliance with various industry standards.
The PJT-24V100WBBA is RoHS3 compliant and has an MSL rating of 1.
The Delta Electronics PJT-24V100WBBA has a power output of 80W, which can be increased to 100W with forced air.
The operating temperature range for the PJT-24V100WBBA is -10°C to 70°C, with derating.
The PJT-24V100WBBA supports chassis mount.
Key features include adjustable output, universal input, and an efficiency of 89%.
The PJT-24V100WBBA is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
