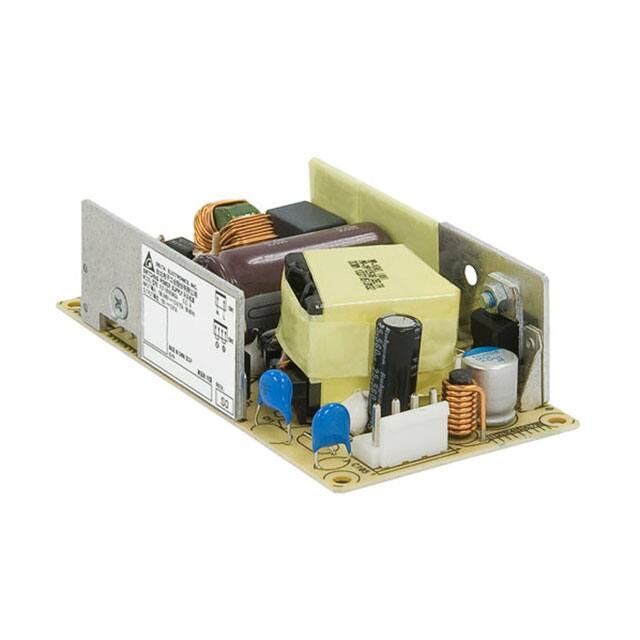

The Delta Electronics PJT-18V65WBAA is an AC/DC converter with a power rating of 65W and an output voltage of 18V. This unit features an Open Frame construction and is designed for Chassis Mount applications.
Key electrical specifications include a Universal Input capability and an efficiency of 88%. The converter operates within a temperature range of -10°C to 70°C, with derating applied. It has a single output and is approved by CB, CE, cURus, and TUV.
Mechanical dimensions are 101.6mm in length, 50.8mm in width, and 30.0mm in height. The current rating is 3.61A. The product is suitable for ITE (Commercial) applications.
Environmental compliance includes RoHS3 compliance and an MSL of 1 Unlimited. REACH status is unaffected.
The PJT-18V65WBAA has a power output of 65W.
The output voltage is 18V.
The PJT-18V65WBAA is an Open Frame AC/DC converter.
It is designed for Chassis Mount.
The operating temperature range is -10°C to 70°C, with derating.
The dimensions are 101.6mm in length, 50.8mm in width, and 30.0mm in height.
The RoHS status is RoHS3 Compliant.
