| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

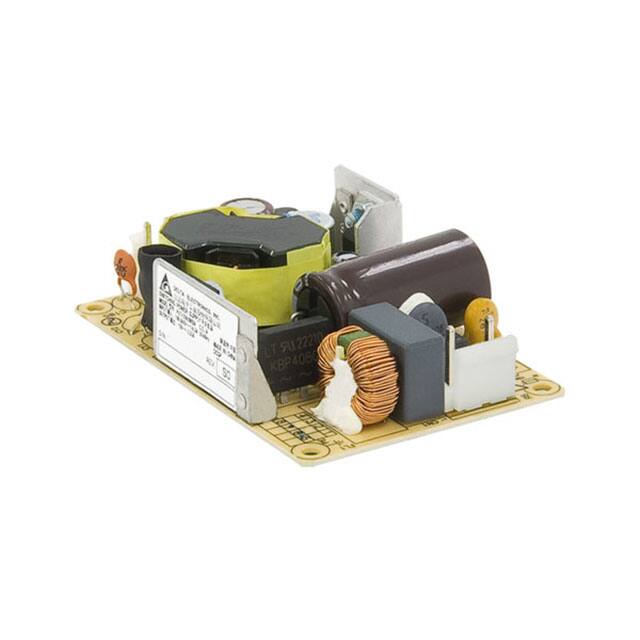

The Delta Electronics PJT-18V40WBAA is an AC/DC converter with a power rating of 40W and an output voltage of 18V. It is designed with an open frame construction and a chassis mount for easy integration into various systems.
Key electrical specifications include a current output of 2.22A and an efficiency of 86%. The converter operates across a wide input voltage range, indicated by its 'Universal Input' feature. It is designed for ITE (Commercial) applications and meets safety standards with approval from agencies such as CB, CE, cURus, and TUV.
This unit has a compact form factor with dimensions of 76.2mm x 50.8mm x 22.9mm. It operates within a temperature range of -10°C to 70°C, with derating applied at higher temperatures. The PJT-18V40WBAA is built for reliability and compliance, with RoHS3 compliance and an MSL of 1.
The PJT-18V40WBAA provides a single output of 18V DC at 2.22A, delivering 40W of power.
The operating temperature range is -10°C to 70°C with derating.
The efficiency is 86%.
The mounting type is chassis mount.
The power rating is 40W.
The output current is 2.22A.
The output voltage is 18V.
