| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

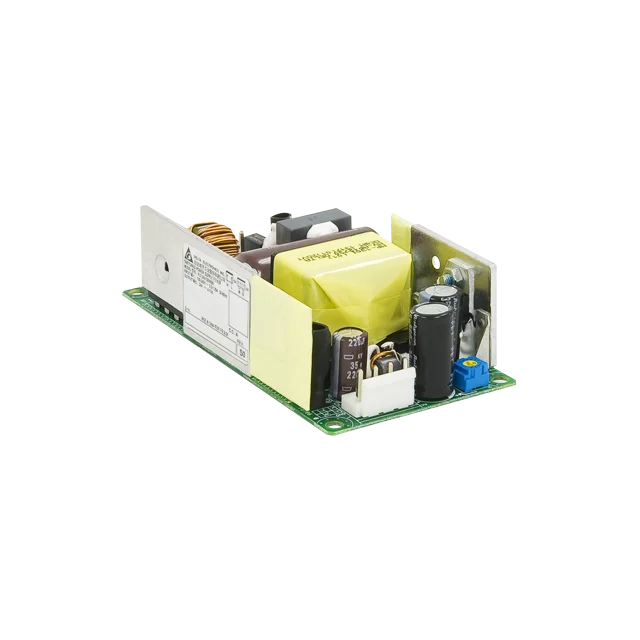

The Delta Electronics PJT-18V100WBBA is an 80W open frame AC DC converter designed for ITE (Commercial) applications. It provides a single 18V output at 4.44A, with a maximum power of 100W under forced air cooling.
Key electrical specifications include an efficiency of 89% and adjustable output with universal input capabilities. The operating temperature range is -10°C to 70°C with derating. Isolation voltage is rated at 3 kV.
This converter features a chassis mount type and measures 101.6mm x 50.8mm x 31.8mm. It is compliant with RoHS3 standards and has an MSL rating of 1 Unlimited. Approval agencies include CB, CE, cURus, and TUV.
The PJT-18V100WBBA provides a single output of 18V at 4.44A.
The power rating is 80W, with 100W available with forced air.
The operating temperature range is -10°C to 70°C with derating.
The efficiency is 89%.
The mounting type is chassis mount.
The PJT-18V100WBBA is approved by CB, CE, cURus, and TUV.
