| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

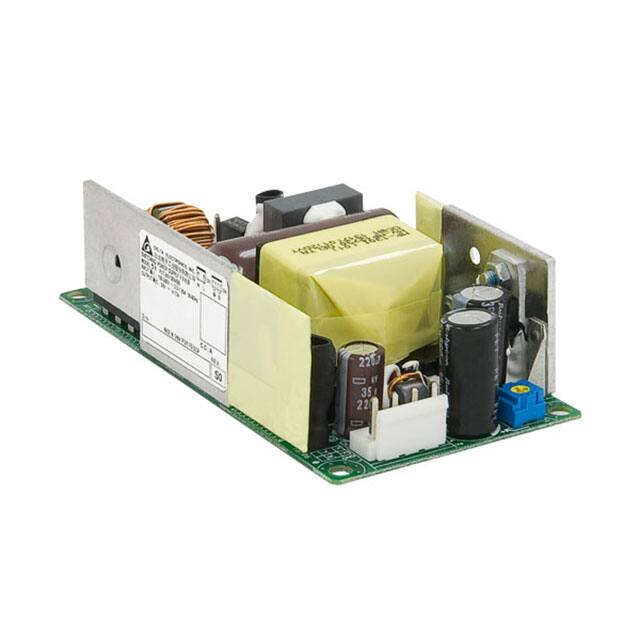

The Delta Electronics PJT-15V100WBBA is an open frame AC/DC power supply designed for ITE (Commercial) applications. It provides a nominal output voltage of 15Vdc and a convection output power of 80W, which can be increased to 100W with forced cooling.
This power supply features a universal AC input voltage range of 90-264 Vac and operates efficiently with typical efficiencies of 87.0% at 115 Vac and 89.0% at 230 Vac (at 100% load). Key electrical specifications include line regulation of ±0.5% and load regulation of ±1.0%. The operating temperature range is -10°C to 70°C with derating.
Designed with a standard industrial footprint of 2" x 4", the PJT-15V100WBBA has dimensions of 101.6 x 50.8 x 31.8 mm. It meets safety standards according to IEC/EN/UL 62368-1 and EMI standards according to EN/BS EN 55032 Class B. The unit weight is 0.15 kg.
The nominal output voltage is 15 Vdc.
The output power is 80W under convection cooling and 100W with forced cooling.
The input voltage range is 90-264 Vac.
The operating temperature range is -10°C to 70°C with derating.
The dimensions are 101.6 x 50.8 x 31.8 mm.
It is certified for safety standards according to IEC/EN/UL 62368-1.
