Mfr Part #:

PJT-15V100WBAA

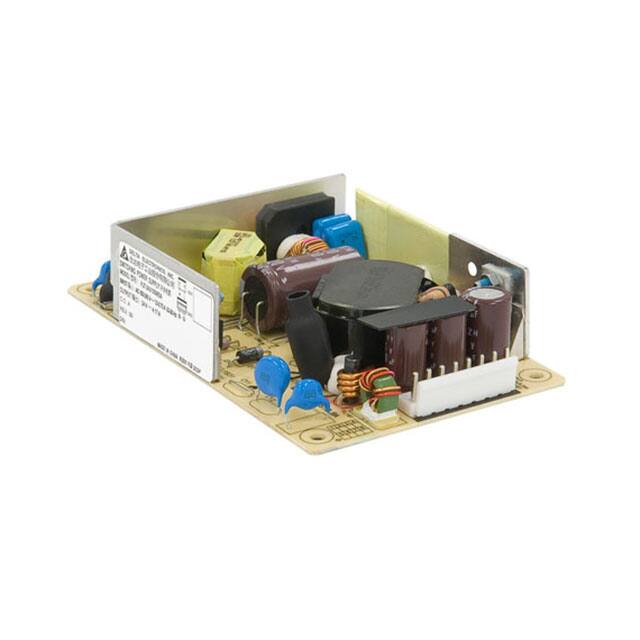

The Delta Electronics PJT-15V100WBAA is a 100W AC/DC converter with a 15V output. It features a universal input and an open frame design for chassis mounting.

Stock on Request

PJT-15V100WBAA Description

Short technical summary and product information.

This Delta Electronics PJT-15V100WBAA is an AC/DC converter designed for ITE (Commercial) applications. It delivers 100W of power with a single 15V output and a maximum current of 6.67A.

The converter features a universal input and an efficiency of 87.5%. Its dielectric strength is rated at 3kV. The operating temperature range is -10°C to 70°C, with derating applied.

Mechanically, the unit has dimensions of 127.0mm x 76.2mm x 31.0mm (5.00" x 3.00" x 1.10"). It is designed for chassis mounting and has an open frame construction.

Compliance includes RoHS3, REACH Unaffected, and MSL 1 Unlimited. Approval agencies include CB, CE, cURus, and TUV.

PJT-15V100WBAA Quick Information

Product Type: AC DC Converter

Series: Open Frame

Canonical Name: Delta Electronics PJT-15V100WBAA AC/DC Converter

Subcategory: Open Frame

PJT-15V100WBAA Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

PJT-15V100WBAA Features

100W AC/DC converter with 15V output.
Universal input with 87.5% efficiency.
Open frame design for chassis mounting.
Operates from -10°C to 70°C with derating.
Approved by CB, CE, cURus, and TUV.

PJT-15V100WBAA Applications

Used in commercial ITE power supply systems.
Ideal for industrial control equipment power.
Suitable for embedded system power rails.
Perfect for test and measurement equipment.

PJT-15V100WBAA FAQs

6 frequently asked questions generated from this part’s specifications.

What is the output voltage and current for the PJT-15V100WBAA?

The PJT-15V100WBAA provides a 15V output voltage and a 6.67A current.

What is the power rating of the PJT-15V100WBAA?

The power rating for this AC/DC converter is 100W.

What type of input does the PJT-15V100WBAA support?

The PJT-15V100WBAA supports universal input.

What is the operating temperature range for this converter?

The operating temperature range is -10°C to 70°C, with derating.

What are the physical dimensions of the PJT-15V100WBAA?

The dimensions are 127.0mm x 76.2mm x 31.0mm.

What mounting type is used for the PJT-15V100WBAA?

This converter uses chassis mount.

Category	AC DC Converters
Manufacturer Name	Delta Electronics
Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current	6.67 A
Efficiency	87.5%
Features	Universal Input
Height	31.0mm (1.10")
Length	127.0mm (5.00")
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature	-10°C ~ 70°C (With Derating)
Power (Watts)	100W
Type	Open Frame
Voltage	3 kV
Width	76.2mm (3.00")
