| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Weight | |
| Width |

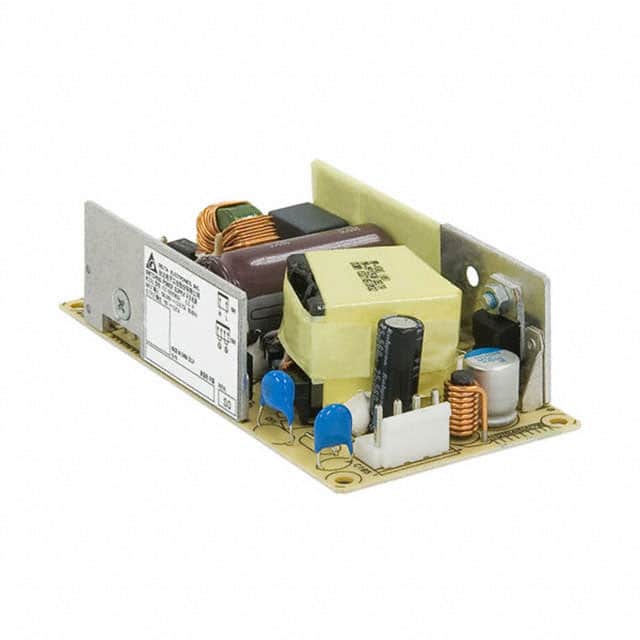

The Delta Electronics PJT-12V65WBAA is an open frame AC/DC power supply designed for ITE (Commercial) applications. It offers a single 12VDC output with a maximum power of 65W and a current rating of 5.00A.
This converter operates with a universal input voltage range of 90-264 Vac and boasts an efficiency of up to 86.5% at 230 Vac. It is designed for natural convection cooling and can operate within an ambient temperature range of -10°C to +70°C, with power derating above 50°C.
The unit conforms to standard industrial dimensions of 101.6 x 50.8 x 30 mm (4" x 2" x 1.18"). It meets safety standards including IEC/EN/UL 62368-1 and EMC standards like EN/BS EN 55032 Class B. Key features include low leakage current (<0.1 mA) and a high MTBF of over 700,000 hours according to Telcordia SR-332.
Mounting is via chassis mount, and it utilizes JST connectors for input and output. The PJT-12V65WBAA is suitable for various industrial automation, machine automation, and test & measurement applications.
90-264 Vac.
12 Vdc at 5.00 A.
-10°C to 70°C with derating.
101.6 x 50.8 x 30 mm, 0.13 kg.
CB, CE, cURus, TUV.
Over voltage, over load, and short circuit protection.
86% at 115 Vac, 86.5% at 230 Vac.
