| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

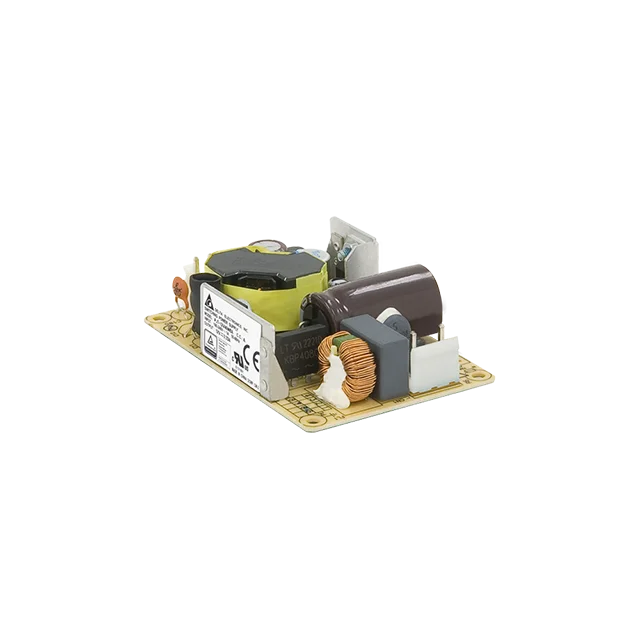

This Delta Electronics PJT-12V40WBAA is an AC/DC converter with a power rating of 40W. It is designed with an open frame construction and chassis mount for versatile integration into various systems. The converter operates with a universal input and offers a nominal output of 12V at 3.33A.
Key electrical specifications include an efficiency of 86% and a power output of 40W. The operating temperature range is -10°C to 70°C, with derating applied. The unit is approved by CB, CE, cURus, and TUV, making it suitable for ITE (Commercial) applications.
Mechanical dimensions are 76.2mm x 50.8mm x 22.9mm. The PJT-12V40WBAA is designed for reliable performance in commercial and industrial environments.
The PJT-12V40WBAA provides a single 12V output with a current rating of 3.33A.
The efficiency is 86%.
The operating temperature range is -10°C to 70°C with derating.
The mounting type is chassis mount.
The isolation voltage is 3 kV.
The PJT-12V40WBAA is approved by CB, CE, cURus, and TUV.
The dimensions are 76.2mm (3.00") length, 50.8mm (2.00") width, and 22.9mm (0.90") height.
