| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

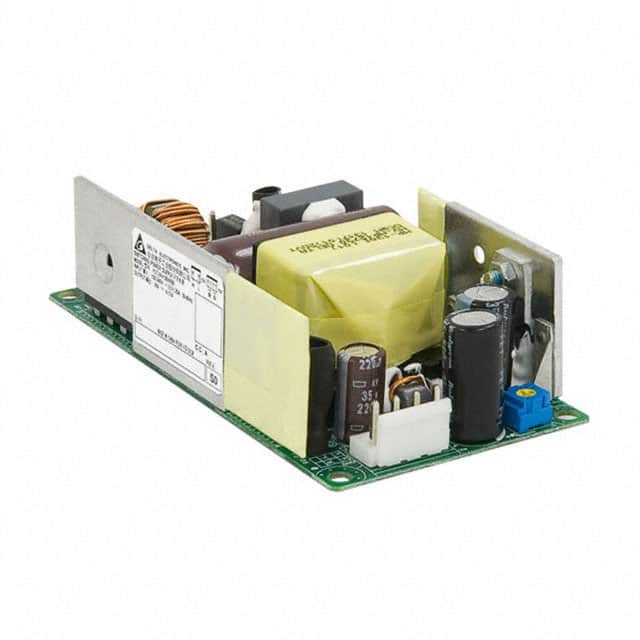

The Delta Electronics PJT-12V100WBBA is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a 12V output with a current rating of 6.67A, delivering 80W of power, or up to 100W with forced air cooling.
Key electrical specifications include an efficiency of 88% and universal input capability. Features such as adjustable output make it versatile for various designs. The converter operates within a temperature range of -10°C to 70°C with derating.
Mechanically, this chassis mount converter measures 101.6mm x 50.8mm x 31.8mm. It is approved by CB, CE, cURus, and TUV, indicating compliance with relevant safety standards.
This model is RoHS3 compliant and has an MSL rating of 1. It is suitable for applications requiring a reliable and compact power solution.
The Delta PJT-12V100WBBA provides 80W of power, with a potential of 100W using forced air.
The PJT-12V100WBBA has a 12V output voltage and a current rating of 6.67A.
The operating temperature range is -10°C to 70°C, with derating applied.
The dimensions are 101.6mm in length, 50.8mm in width, and 31.8mm in height.
It is approved by CB, CE, cURus, and TUV.
The product is listed as RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
