| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

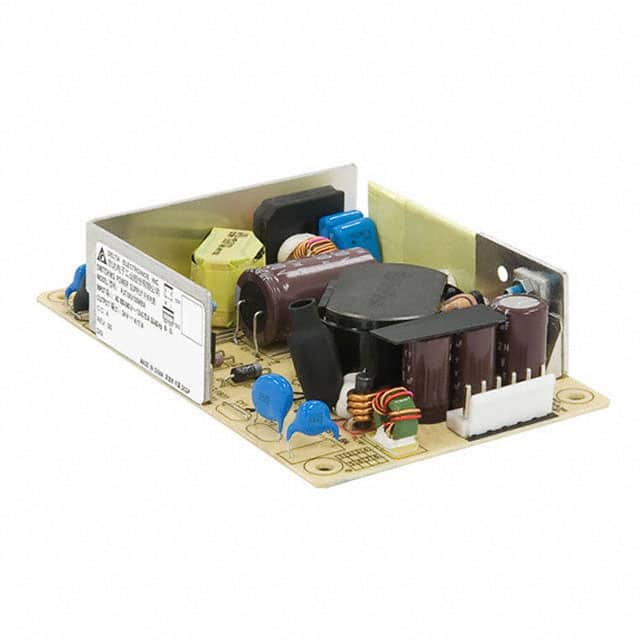

This Delta Electronics PJT-12V100WBAA is an AC/DC converter with a power output of 100W and a 12V output voltage. It is designed with an open frame construction and a chassis mount type, making it suitable for integration into various systems.
The converter operates with a universal input and offers an efficiency of 86.5%. Key electrical specifications include a current rating of 8.33A and a single output. The operating temperature range is from -10°C to 70°C, with derating applied.
Designed for ITE (Commercial) applications, this unit has undergone rigorous testing and holds approval agency certifications including CB, CE, cURus, and TUV. Its dimensions are 127.0mm in length, 76.2mm in width, and 31.0mm in height.
Compliance information indicates RoHS3 compliance and an MSL of 1. The REACH status is unaffected. The isolation voltage is rated at 3 kV.
The output voltage is 12V DC.
Open frame, chassis mount.
-10°C to 70°C with derating.
86.5%.
3 kV.
ITE (Commercial) applications.
127.0mm x 76.2mm x 31.0mm.
