| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Features | |
| Gender | |
| Industry Recognized Mating Diameter | |
| Insulation Color | |
| Internal Switch(s) | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Shielding | |
| Signal Lines | |
| Termination | |
| Termination Style |

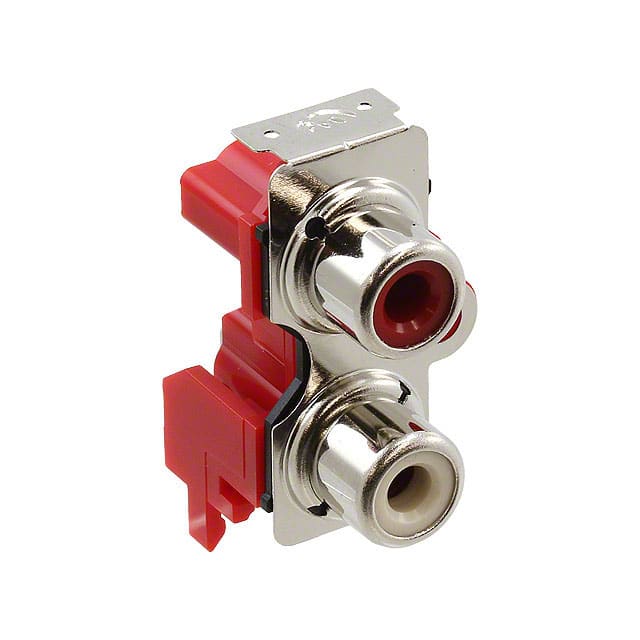

The PJRAS1X2S01X is a female RCA (phono) jack connector designed for mono audio signal applications. It features a 3.20mm inner diameter and 9.00mm outer diameter mating interface, with 2 sets of 2 conductors and 3 contacts. The connector is shielded to reduce electromagnetic interference and includes a grounding tab for reliable ground connection. Insulation is color-coded red and white for channel identification. Mounting is through hole, right angle, with solder termination for secure PCB attachment. The operating temperature range is -25°C to 85°C, making it suitable for a variety of consumer and professional audio environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.62 | $2.62 |
| 10+ | $2.04 | $2.04 |
| 25+ | $1.92 | $1.92 |
| 100+ | $1.82 | $1.82 |
| 250+ | $1.70 | $1.70 |
| 500+ | $1.54 | $1.54 |
| 2,592+ | $1.50 | $1.50 |
| 5,184+ | $1.41 | $1.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Phono (RCA) Jack.
Female.
2 Sets of 2 Conductors, 3 Contacts.
Through Hole, Right Angle.
Yes, it is shielded.
-25°C to 85°C.
Red and White.
