Mfr Part #:

PJRAN1X1U02X

Name: PJRAN1X1U02X
Brand: Conxall/Switchcraft
SKU: PJRAN1X1U02X

Mfr Name: Conxall/Switchcraft

Description:

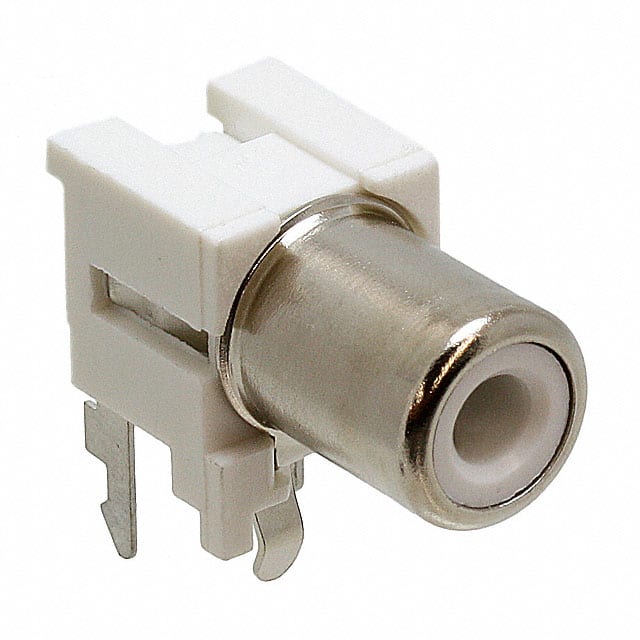

CONN RCA JACK MONO 3.2MM R/A

Stock on Request

PJRAN1X1U02X Description

Short technical summary and product information.

CONN RCA JACK MONO 3.2MM R/A

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

PJRAN1X1U02

Conxall/Switchcraft

CONN RCA JACK MONO 3.2MM R/A

Category	Audio Connectors
Manufacturer Name	Conxall/Switchcraft
Actual Diameter	0.134" (3.40mm ID), 0.328" (8.33mm OD)
Connector Type	Phono (RCA) Jack
Gender	Female
Industry Recognized Mating Diameter	3.20mm ID, 9.00mm OD (RCA)
Insulation Color	White
Internal Switch(s)	Single Switch
Mounting Type	Through Hole, Right Angle
Number of Positions	2 Conductors, 3 Contacts
Operating Temperature	-25°C ~ 85°C
Shielding	Unshielded
Signal Lines	Mono
Termination	Solder
