Mfr Part #:

PJQ5463A-AU_R2_000A1

Name: PJQ5463A-AU_R2_000A1
Brand: PANJIT
SKU: PJQ5463A-AU_R2_000A1

Mfr Name: PANJIT

Description:

60V P-CHANNEL ENHANCEMENT MODE M

Stock on Request

PJQ5463A-AU_R2_000A1 Description

Short technical summary and product information.

60V P-CHANNEL ENHANCEMENT MODE M

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Transistors - FETs, MOSFETs - Single
Manufacturer Name	PANJIT
Current	4A (Ta), 15A (Tc)
Drain to Source Voltage (Vdss)	60 V
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
FET Type	P-Channel
Gate Charge (Qg) (Max) @ Vgs	17 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds	879 pF @ 30 V
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C (TJ)
Power Dissipation (Max)	2W (Ta), 25W (Tc)
Rds On (Max) @ Id, Vgs	68mOhm @ 7.5A, 10V

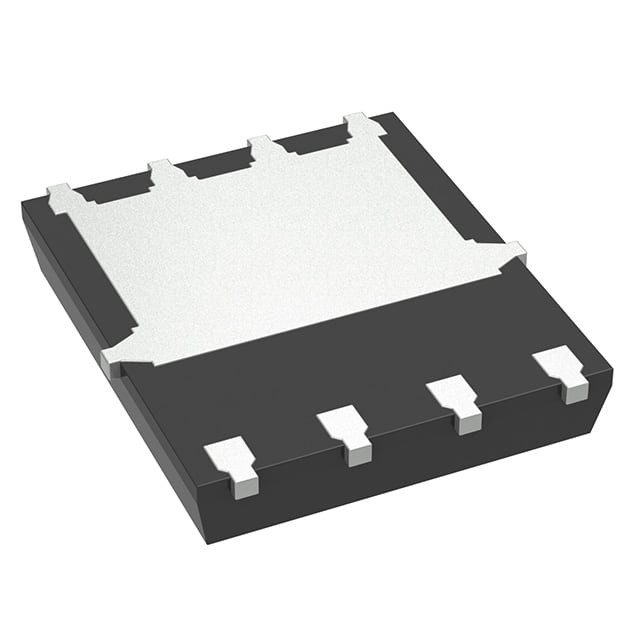

Supplier Device Package	DFN5060-8
Technology	MOSFET (Metal Oxide)
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2.5V @ 250µA
