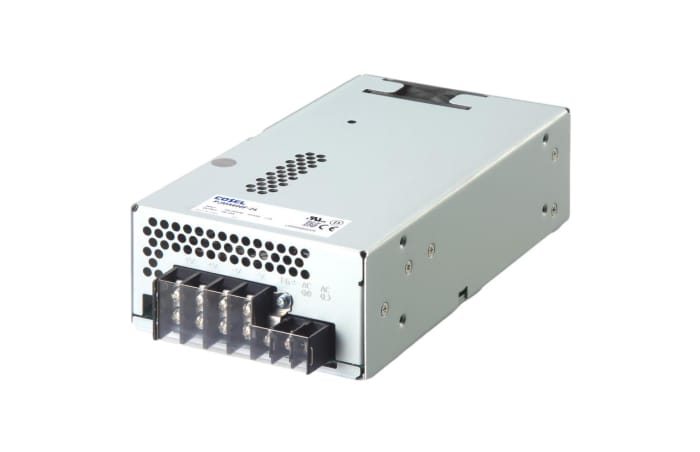

The Cosel PJMA600F-12 is a high-reliability, enclosed AC-DC power supply engineered for demanding applications. It delivers a stable 12V output with a maximum power of 600W, drawing from a universal input voltage range of 85 to 264V ac.
Designed for chassis mounting, this power supply features a robust construction and operates efficiently with an 84% efficiency rating. It offers a wide operating temperature range from -20°C to 70°C, with derating applied. The unit provides 4kV of insulation voltage, making it suitable for applications requiring enhanced safety.
Key specifications include a single output, an output current of 50A, and compliance with standards such as 60601-1. The dimensions are 214.9mm in length, 119.9mm in width, and 61.0mm in height, with a weight of 2kg. It is also noted for its features like adjustable output, PFC, and universal input.
This power supply is suitable for industrial and medical systems requiring dependable power conversion. Its enclosed type and chassis mount design facilitate integration into various equipment setups.
The Cosel PJMA600F-12 has a maximum output voltage of 12V.
The power rating of the PJMA600F-12 is 600W.
The Cosel PJMA600F-12 accepts an input voltage range of 85V to 264V ac.
The operating temperature range for the Cosel PJMA600F-12 is -20°C to 70°C, with derating.
The PJMA600F-12 is designed for chassis mounting.
