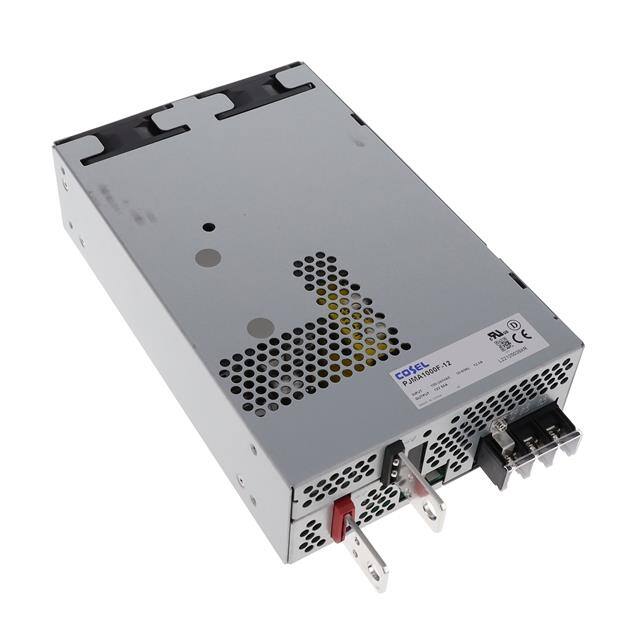

The Cosel PJMA1000F-12 is an enclosed AC/DC converter designed for medical applications. It offers a substantial 1008W power output and a 12V output voltage, making it suitable for demanding power requirements.
This converter features a chassis mount type and is built with adjustable output capabilities, Power Factor Correction (PFC), and universal input for broad compatibility. Its dimensions are 240.0mm in length, 150.1mm in width, and 61.0mm in height. The operating temperature range is -20°C to 70°C with derating.
Key electrical specifications include an efficiency of 85% and an isolation voltage of 4 kV. It is approved by CE, cURus, and DEMKO, and complies with standard 60601-1, indicating its suitability for medical equipment.
With a single output and a robust design, the PJMA1000F-12 is a reliable power solution for various industrial and medical systems requiring stable and high-power AC to DC conversion.
-20°C to 70°C with derating.
Output current is 84A at 1008W.
85%.
4 kV.
CE, cURus, DEMKO.
240.0mm x 150.1mm x 61.0mm.
Yes, adjustable output with PFC.
