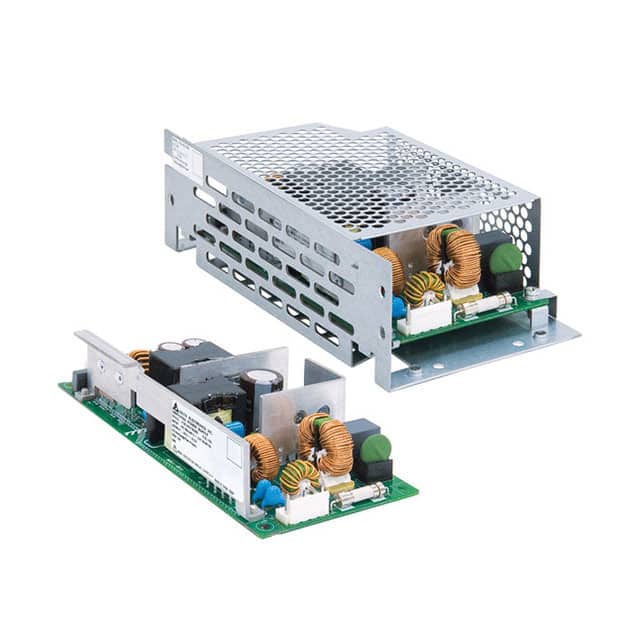

The Delta Electronics PJB-24V150WLNA is an open frame AC/DC converter designed for ITE (Commercial) applications. It delivers a 24V output at 150W with a maximum current of 6.3A.
Key electrical specifications include an efficiency of 90.5% and features such as adjustable output, Power Factor Correction (PFC), and universal input. The operating temperature range is -10°C to 70°C with derating.
This converter has a chassis mount type and dimensions of 188.0mm x 85.0mm x 47.0mm. It is approved by CB, CE, cURus, and TUV, indicating compliance with various safety and performance standards.
The output voltage is 24V and the output current is 6.3A.
The power rating is 150W.
The operating temperature range is -10°C to 70°C with derating.
It uses chassis mount mounting.
The efficiency is 90.5%.
Key features include adjustable output, power factor correction (PFC), and universal input.
It is approved by CB, CE, cURus, and TUV.
