| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

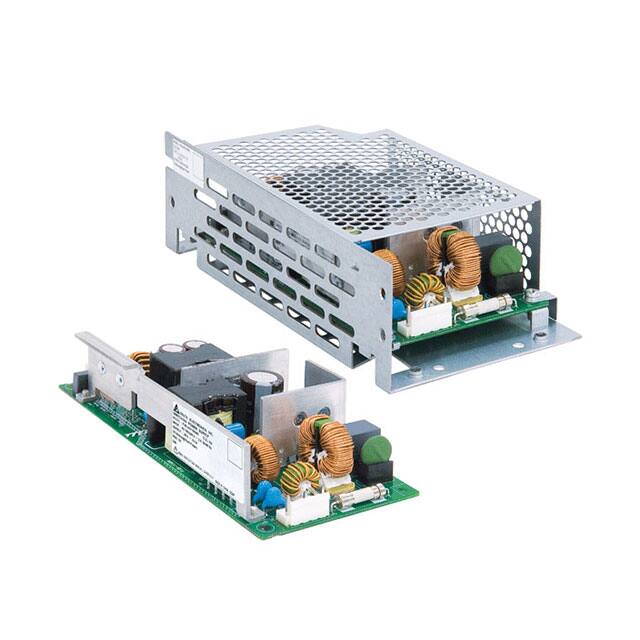

The Delta Electronics PJB-24V150WBRA is a 150W open frame AC/DC converter suitable for ITE (Commercial) applications. This unit offers a single output with a current rating of 6.3A and an efficiency of 90.5%.
Key features include adjustable output, power factor correction (PFC), and a remote on/off function, along with a universal input capability. The converter operates within a temperature range of -10°C to 70°C with derating. Its dimensions are 160.0mm in length, 75.0mm in width, and 37.0mm in height.
Designed for chassis mounting, the PJB-24V150WBRA is approved by CB, CE, cURus, and TUV. It complies with RoHS3 standards and has an MSL rating of 1 Unlimited. The REACH status is unaffected.
The PJB-24V150WBRA provides a single output of 24V.
The PJB-24V150WBRA is rated for 150 watts.
The efficiency is 90.5%.
The operating temperature range is -10°C to 70°C with derating.
It uses chassis mount.
The dimensions are 160.0mm x 75.0mm x 37.0mm.
It is approved by CB, CE, cURus, and TUV.
